Basic Info.
Surface Treatment
Nickel Plating, Chrome Plating, Zinc Plating ,Blac
Finish
Oil DIP,Passivation,Blacking, Zinc/Nickel/Chrome/S
Style
Disk;Diaphragm;Dish
Product Name
Metric Belleville Spring Lock Washer
Standard
DIN2093
Code
W-Disc Spring(12)
Transport Package
Plastic Box
Specification
6-500mm
Trademark
HND or Customized logo
Origin
Xiamen
HS Code
7320209000
Production Capacity
5000000/Year
Product Description
Product Description

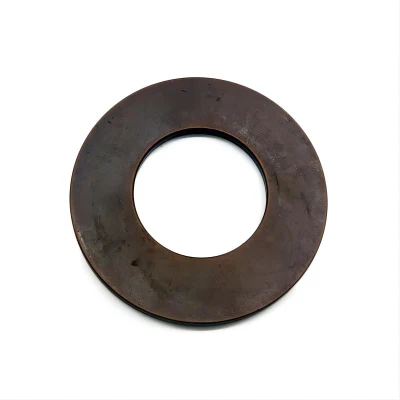

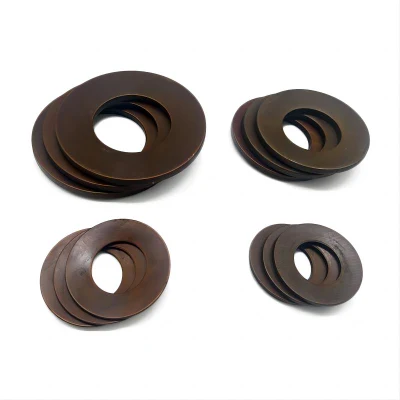

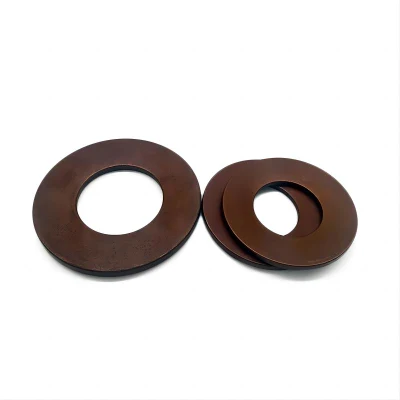

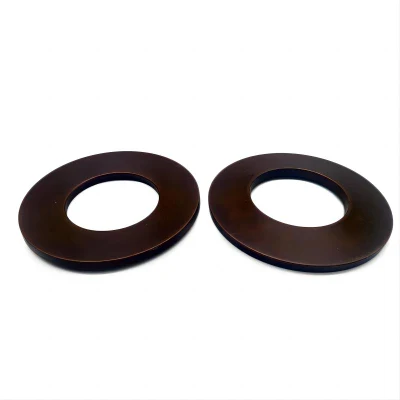

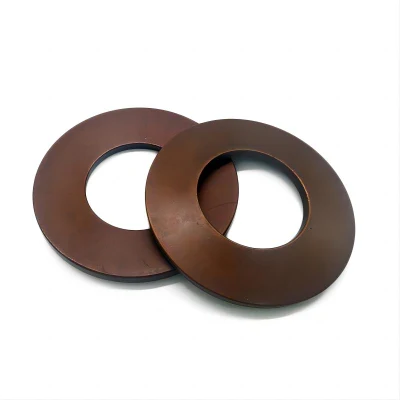

Disc springs & Belleville washers
Industrial Using Carbon Steel Plate Spring Disc Spring
300 different sizes in stock from 6mm up to 500mm outside diameter
The disc spring is a spring washer with a conical shape. It can be subjected to large loads or impacts with minor deflection, and its characteristics can be changed by itself or by stacking.
| Material | Standard | |||
| GB | DIN | JIS | ASTM | |
| Carbon steel and carbon alloy steel | 65Mn | C67S | SWRH67A/WRH67B | 1566 |
| T8Mn | C85W | SK85(SK5) | SAE1085 | |
| T7A | C70W2 | SK7 | SAE1070 | |
| 50CrVA | 51CrV4/50CrV4 | SUP10 | G6150 | |
| 60Si2MnA | 60SiCr7 | SUP7 | ASTM9260 | |
| Corrosion resistant steel | 17Cr-7Ni | X12CrNi177 | SUS301 | 301 |
| 0Cr18Ni9 | X5CrNi1810 | SUS304 | 304 | |
| 0Cr17Ni12Mo2 | X5CrNiMo1712 | SUS316 | 316 | |
| 0Cr17Ni7Al | X7CrNiAl17-7 | SUS631 | 17-7PH | |
| High temperature steel | GH4145 | NiCr15Fe7TiAl | NCF750 | Inconel X-750 |
Products Details Material Description
Spring steel 60Si2Mn,50CrVA/51CrV4, Stainless steel 304, stainless steel 316. Inconel-750.
Surface treatment Standard corrosion protection is phosphating and oiling. Other coatings like Mechanical Zinc Plating, Chemical Nickel Plating,Docromet / Geomet Coating are available.
Stacked Excellent performance on dampening effect especially when stacked.
