Basic Info.
Model NO.
ZZ
Power
Diesel
Drive Wheel
6×6
Seats
≤5
Horsepower
＞450hp
Engine Capacity
＞8L
Tire Certification
ISO
Tire Design
Radial
Condition
New
Colour
Optional
Driving Type
6*6
Loading Capacity
40-50t
Transport Package
Nude
Specification
ISO
Trademark
HOWO
Origin
China
HS Code
8701
Production Capacity
2000
Product Description

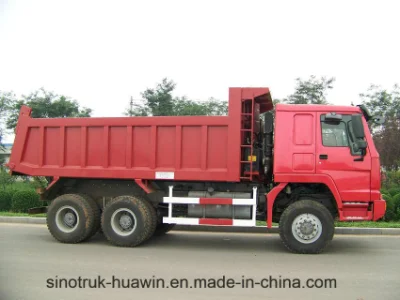

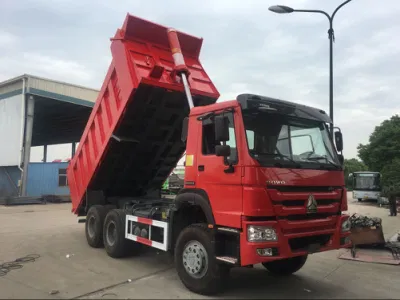

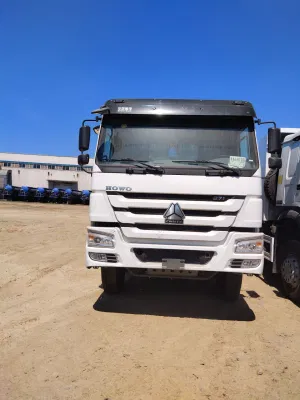

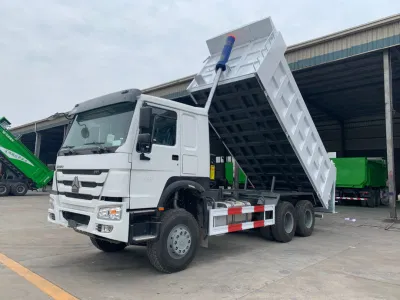

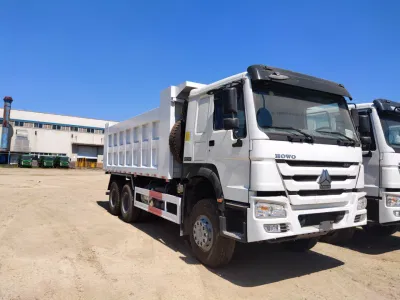

SINOTRUK HOWO 6X6 All Drivig Dump Truck
Technical Parameters | Engine | Make: SINOTRUCK | |
| Diesel: 4-stroke direct injection diesel engine | ||
| Engine model: WD615.87, Euro II or Euro III(EGR), WD615.93Eemission standard | ||
| 6-sylinder in-line with water cooling, turbo-charging and intercooling | ||
| Maximum output: 290hp (213kW) at 2200rpm | ||
| Displacement: 9.726L | ||
| Bore: 126mm | ||
| Stroke: 130mm | ||
| Compression ratio: 17.5: 1 | ||
| Specific fuel consumption: 195g/kWh | ||
| Engine oil fillingquantity (long-term filling): 40L | ||
| Thermostat with 80° C opening begin | ||
| Twin sylinder air compressor | ||
| Rigid fan | ||
| Option: Thermostat with 71° C opening begin | ||
| Visco fam | ||
| Cold start with electro-heater | ||
| Clutch | Single-plate dry coil-spring clutch, diameter 420mm, hydraulically operating with air assistance | |
| Transmissin | Model: RT11509C | |
| Ratro: 11.40 , 7.94 , 5.63 , 4.06 , 2.81 , 1.96 , 1.39 , 1.00 , 11.35R | ||
| Option: 5S-150GP | ||
| Propeller Shaft | Double universal joint propeller shaft with gear-shaped coupling flange | |
| Front Axle | Steering with double T-cross section beam | |
| Rear Axles | Pressed axle housing, single reduction with hub reduction and differential locks between axles and wheels | |
| Ratio: 5.73 | ||
| Chassis | Frame: U-profile parallel ladder frame with section of 243× 80× 8mm and reinforced subframe, all cold reveted cross members | |
| Front suspension: 12 semi-elliptic leaf springs with hydraulic telescopic double-action shock absorbers and stabilizer | ||
| Rear suspension: 12 leaf semi-elliptic springs with bogie springs | ||
| Fuel tank: 400L capacity with locking fuel cap, fitted to the off side of the chassis | ||
| Spare wheel | ||
| Steering | ZF8098, hydraulic steering with power assistance | |
| Ratio: 22.2-26.2 | ||
| Braking System | Service brake: dual circuit compressed air brake | |
| Parking brake(emergency brake): spring energy, compressed air operating on rear wheels | ||
| Auxiliary brake: engine exhaust brake | ||
| Option: ABS | ||
| Wheel Types | Rims: 8.5-20, 10 hole-steel | |
| Tyres: 12.00-20 | ||
| Option: 12.00R20 11.00-20 11.00R20 14.00-20 | ||
| Cab | Standard cab | |
| Electrical System | Operating voltage: 24V, negative grounded | |
| Starter: 24V, 7.5kW | ||
| Alternator: 3-phrase, 28V, 1500W | ||
| Batteries: 2× 12V, 162Ah/180Ah | ||
| Cigar-lighter, horn, headlamps, fog lights, brake lights, indicators and reverse light | ||
| Instrument Panel | Active check control with indicators, with this instrument the daily manual checks on the vehicle and combined indicators of compressed air pressure, coolant temperature, engine oil pressure and battery charging | |
| Dimensions in mm | Wheel base | 3500+1400 |
| Front wheel track | 2022/2041 | |
| Rear wheel track | 1850 | |
| Front overhang | 1578 | |
| Rear overhang | 725 | |
| Approach angle(° ) | 32 | |
| Departure angle(° ) | 70 | |
| Overall length | 8368 | |
| Overall width | 2496 | |
| Overall height | 3200 | |
| Cargo body size | 6568× 2300× 800 | |
| Weight in kg | Permissible loading capacity | 20000 |
| Chassis dead weight | 9670 | |
| Gross vehicle weight | 25000 | |
| Front axles loading capacity | 7000 | |
| Rear axles loading capacity | 2× 13000 | |
| Performance | Maximum driving speed(km/h) | 67 |
| Maximum gradeability(%) | 40 | |
| Minimum ground clearance(mm) | 298 | |
| Minimum truning circle(m) | 14.5 | |
| Fuel concumption(L/100 km) | 40 | |
