Product Description
Feature:

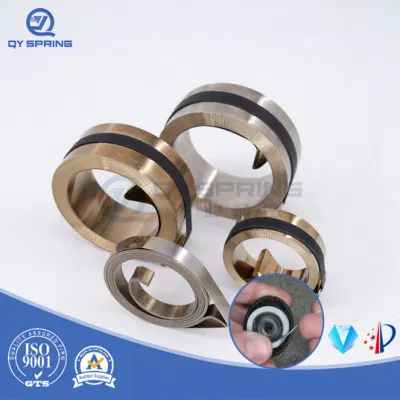

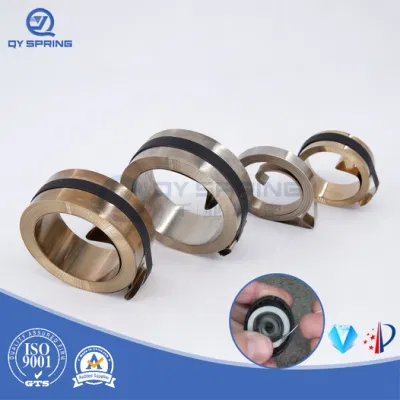

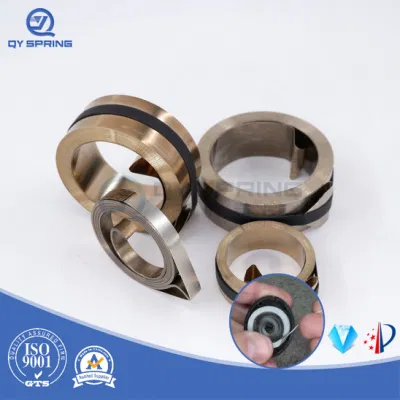

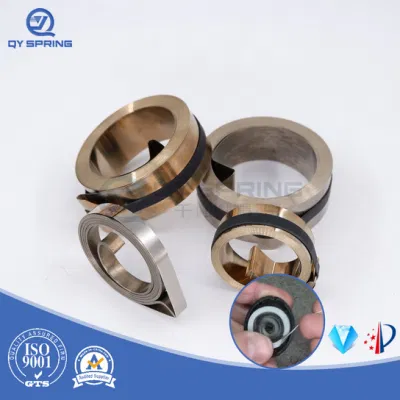

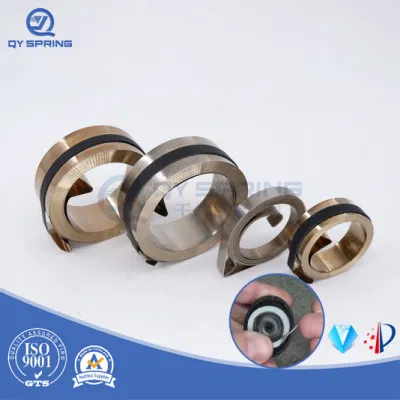

The power spring is coiled from steel strip. A spring box is required to limit its outer diameter. The center of the spring is connected to the shaft. When an external force is applied to make the shaft and the spring rotate relative to each other, the spring will be wound on the shaft and stored Torsion, when the external force disappears; the spring generates torsion on the shaft or spring box.
Advantage:
Power springs are divided into natural power springs and pre-stressed power springs according to their relaxed shape. In contrast, the Pre-stressed power spring can store 25% to 55% more torque and provide more effective turns.
In order to avoid the risk of cable leakage due to the long exposure of the cable, a cable take-up device was made. The core of this cable take-up device is the power clockwork, it uses the characteristics of the clockwork bearing force produced by the effective use of its mechanical energy storage, driving force output role, so that it can produce a large number of rotating turns in the same indoor space, prompting the cable take-up in the work up to be able to handle, a huge increase in its work efficiency, then its necessity is obvious.
Notice:
Because this type of spring is a non-standard product, the same shape has different sizes. QianYe has specialized in research and development and production of constant force springs for 20 years, and can customize constant force springs with a thickness of 0.075mm-0.85mm and a width of 4mm-50mm.You can also provide drawings or data (the thickness of the spring, width, working length, inner diameter, outer diameter), and the customer service staff can provide you with a quotation and customized cycle. Welcome to consult.
| HS Code | 7320909000 | Thickness | 0.06-0.8mm |
| Payment | T/T; Paypal | Width | 2-65mm |
