Basic Info.
Model NO.
EDO
Product
Long Stroke 2m Lifting Hand Tools 30-40kgs Lifting
Color
Yellow
Load
3-100kg
Length of The Wire
1.5m
OEM
Yes
Weight
3-20kg
HS
8423812000
Transport Package
Carton
Specification
3-5kg
Trademark
HUGO
Origin
Shanghai
HS Code
8423812000
Production Capacity
100pieces /Day
Product Description

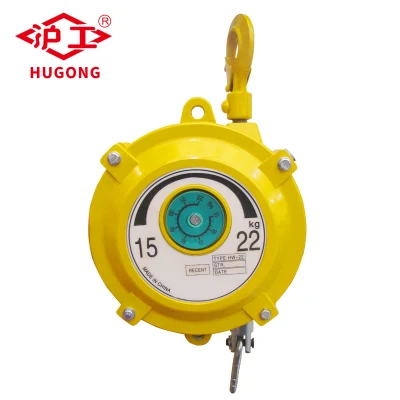

long stroke 2m lifting hand tools 30-40kgs lifting spring balancer
Spring Balancer is a kind of accessorial tool special for suspending electrical machine, which can balance with weight of tools, and achieve modern and civilized production. It has been widely used for welding product lines of vehicle body, rivet lines, and assembly line of engine, motorcycles and home appliances where the tools must be hung. It'll be the ideal choice to reduce the labour intensity and increase the productivity.
capacity range:1,3,5,9,15,22,30,40,50,60,70,80,100,120,140,160,180,200kgs
| Model | Min.Capacity | Max.Capacity | Working length | N.W. |
| 1-3kg | 1kg | 3kg | 1.3m | 1.7kg |
| 3-5kg | 3kg | 5kg | 1.3m | 1.8kg |
| 4.5-9kg | 4.5kg | 9kg | 1.3m | 3.6kg |
| 9-15kg | 9kg | 15kg | 1.3m | 4.0kg |
| 15-22kg | 15kg | 22kg | 1.5m | 7.4kg |
| 22-30kg | 22kg | 30kg | 1.5m | 7.8kg |
| 30-40kg | 30kg | 40kg | 1.5m | 10kg |
| 40-50kg | 40kg | 50kg | 1.5m | 10.5kg |
| 50-60kg | 50kg | 60kg | 1.5m | 11.5kg |
| 60-70kg | 60kg | 70kg | 1.5m | 12kg |
| 70-80kg | 70kg | 80kg | 1.5m | 12.5kg |
| 80-100kg | 80kg | 100kg | 1.5m | 18kg |
| 100-120kg | 100kg | 120kg | 1.5m | 19kg |
| 120-140kg | 120kg | 140kg | 1.5m | 20kg |
| 140-160kg | 140kg | 160kg | 1.5m | 22kg |
| 160-180kg | 160kg | 180kg | 1.5m | 24kg |
| 180-200kg | 180kg | 200kg | 1.5m | 36kg |
