Basic Info.
Model NO.
DW-CV547
Connection Form
Thread
Structure
Elevated
Pressure
Low Pressure
Function
One Way Flow
Sealing Form
Rubber Seals
Flow Direction
Unidirection
Standard
GB
Application
Water Industrial Usage, Household Usage
Spring
SS304
Pin
Brass, ABS
Keywords 1
Non Return Valve Price
Keywords 2
Check Valves
Keywords 3
Foot Valve
Transport Package
Poly Bag, Inner Box, Carton and Pallet.
Specification
1/2′′-2′′
Trademark
DW or OEM
Origin
China
HS Code
8481804090
Production Capacity
120000PCS/Month
Packaging & Delivery
Package Size
40.00cm * 18.00cm * 20.00cm
Package Gross Weight
18.000kg
Product Description
Description:

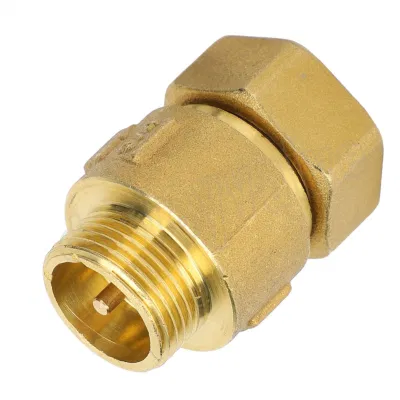

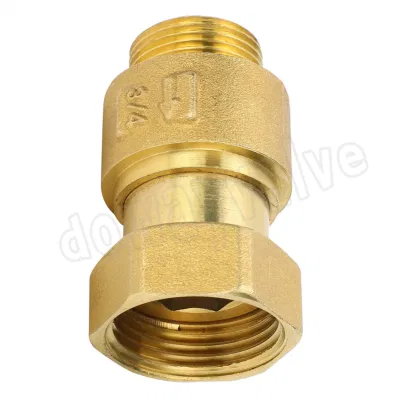

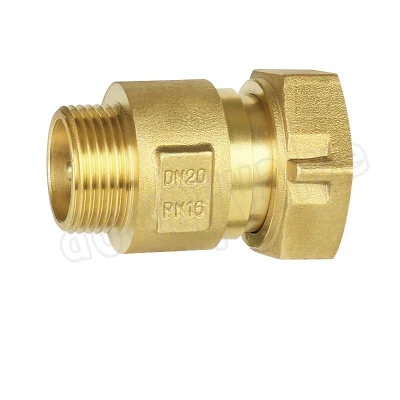

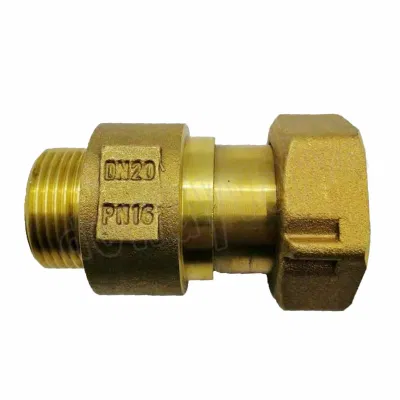

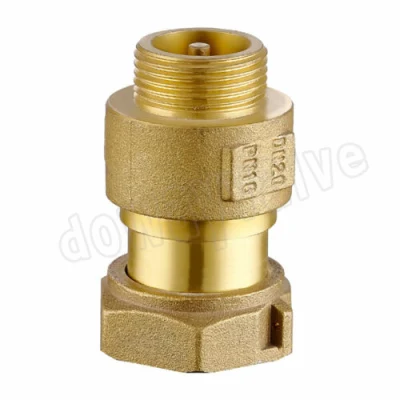

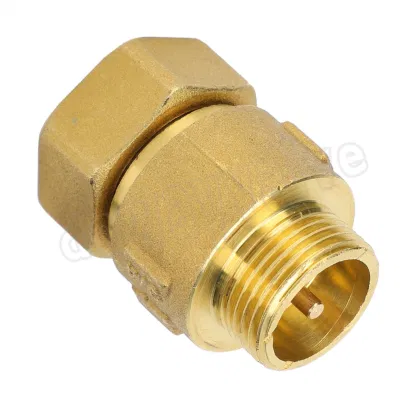

Brass forged body, brass disc/ABS disc, Brass bonnet, S/S filter is available for vertical check valve
The valve is suitable for flow non-retuning use. For pump and water pipes instruction
1. Application: Low pressures on condition that non aggressive fluids are used
2. Material: Forged brass (CW617N, CW614, CW602N, ASTM C37700)
3. Size: 1/2''-4''
4. Thread Wtandard: ISO7/1, ISO228, NPT, DIN2999
5. Delivery Time: Within 30~45 days after received payment.
6. Payment Terms: T/T (30% payment in advance, the balance is paid at the sight of B/L copy).
7. Package: Inner box, outer carton, then by pallet
Technical Specification:
| Working Pressure | 1.6Mpa |
| Tested Pressure | 2.0Mpa |
| Working Medium | Water, oil, gas |
| Working Temperature | -20° C≤ T≤ 150° C |
FAQ:
1. What is your term of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.
2. How about your delivery time?
A: It usually takes 15 to 30 days, which generally depends on the quantity of your order and our storage.
3. Can I get free samples?
A: Yes, send your address, your telephone number, post code, and express account number to us, and tell us which samples you need and samples specification.
4. Can you produce products with my own brand?
A: Yes, we can offer OEM services.
