Basic Info.
Product Description

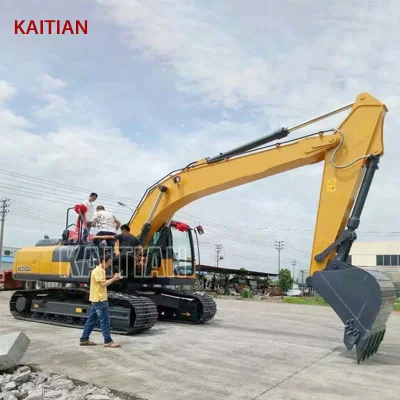

>> Introduction
>> Characteristic >> The complete vehicle adopts original engine that is imported from international renowned brand, Also, it introduces the constant power control system to give full swing to the engine power, and to provide the excavator with strong power.
>> hydraulic Medium excavator has both excellent environmental performance and large power, matched with ow fuel consumption design, operating costs are significantly reduced.
>> Leather seats, with seat belts and handrails, can be adjusted before and after, with adjustable rear corners.
>> German MA brand continental hydraulic hose is an international brand with stable and reliable quality.
>> The external hydraulic hose is equipped with spring retainer and spiral protection hose to avoid friction, collision, bending and other damage
>> The action levers are equipped with dust covers and portable handrails
>> The main console is composed of three parts. The overall shape is like a "fist", rich in tension, streamlined trend design, calm and domineering, which is in line with the aesthetics of the East and the West. The connector adopts stainless steel countersunk head gasket + countersunk head hexagon socket screw, which has good fastening and decorative effects.
>> The instrument integrated cover at the front is easy to disassemble, and the later maintenance of electrical components and main valve is particularly convenient
| The whole system is equippedwith big brand changchai engine,stable performance, strong power. | One-piece molding, not easy tobreak,The oil pipe is on the insideof the boom. Reinforced forearm design improves structure, disperses stress, stability and durability. | Simple operation mode,convenient maintenance,perfect technical supportand high reliability, highquality price-performanceratio and low use cost. |
| Reinforcement design, longer service life. | The hydraulic system uses reliable high-performance hydraulic compo-nents, combined with pilot hydraulicand mechanical operation modes,which is light, flexible and reliable.Ensure the movement of the machineand work more coordinated. | The crawler can be adjusted leftand right in the narrow scene,making it more convenient toenter and leave different scenes. All parts of walking have beenstrengthened as a whole, whichgreatly improves the reliability. |
| Model | Unit | XE200DA | |
| Operating weight | Kg | 21200 | |
| Bucket capacity | m³ | 0.93~1.1 | |
| Engine | Model | / | QSB7 |
| No. of cylinders | / | 6 | |
| Rated power/speed | kw/rpm | 135/2050 | |
| Maximum torque/speed | N.m | 740/1250 | |
| Displacement | L | 6.7 | |
| Main performance | Travel speed(H/L) | km/h | 5.3/2.9 |
| Swing speed | r/min | 11.6 | |
| Gradeability | ° | ≤35 | |
| Ground pressure | kPa | 46.9 | |
| Bucket digging force | kN | 149 | |
| Arm digging force | kN | 121 | |
| Maximum tractive force | kN | 184 | |
| Hydraulic system | Main pump | / | Two piston pumps |
| Rated flow of main pump | L/min | 2×209 | |
| Main safety valve pressure | MPa | 34.3/37 | |
| Travel system pressure | MPa | 34.3 | |
| Swing system pressure | MPa | 28 | |
| Pilot system pressure | MPa | 3.9 | |
| Oil Capacity | Fuel tank capacity | L | 400 |
| Hydraulic tank capacity | L | 220 | |
| Engine oil capacity | L | 24 | |
| Appearance size | Overall length | mm | 9625 |
| Overall width | mm | 2910 | |
| Overall height | mm | 3100 | |
| Width of platform | mm | 2830 | |
| Track length | mm | 4155 | |
| Overall width of chassis | mm | 2890 | |
| Track shoe width | mm | 600 | |
| Length to center of rollers | mm | 3366 | |
| Track gauge | mm | 2290 | |
| Counterweight clearance | mm | 1050 | |
| Min. ground clearance | mm | 486 | |
| Min. tail swing radius | mm | 2890 | |
| Track height | mm | 940 | |
| Working scope | Max. digging height | mm | 9680 |
| Max. dumping height | mm | 6815 | |
| Max. digging depth | mm | 6460 | |
| Maximum depth cut for 2240mm(8 ft) level bottom | mm | 6275 | |
| Max. vertical wall digging depth | mm | 5590 | |
| Max. digging radius | mm | 9790 | |
| Min. swing radius | mm | 3530 | |
>> Package & Delivery
>> Service
Acting as a good adviser, our well-trained sales groups and professional technical team propose most rational solutions for our valued client as per practical project requirement. >> Select suitable model & matched equipment. >> Strong technical support. Reply clients' questions within 24 hours. |
We have responsible team from raw material to finished products, and guarantee 100% pass rate. >> Design and manufacture products basis of client's special requirement >> Inspect each machine & matched accessories strictly before delivery >> Timely inform client of production progress. |
We're always with you in after-sale service. >> We can arrange related after-sales representatives for debugging and training at worksite when starting up. >> E-mail, call or door-to-door service in later using.
|
>> Overseas Project
>> Exhibition
>> About KAITIAN
| Beijing Jincheng Mining Technology Co.,Ltd(JCDRILL) provide users high quality Mining & Drilling solutions,we always focus on the strategic conception of "Survival by quality, Development by credit''. We have specilized in research, development and produce of rock blasting drilling rig, water well drilling rig, diamond core drilling rig, anchor drilling rig, and relative accessories & drilling services. constantly provide professional drilling solutions for all customers with our advanced technology, excellent equipment, strict testing means and good service network,which establish our brand "JCDRILL" a good image of market, now,we products account for 50% of domestic market and have been export to more than 40 countries, and we awarded ISO9001: 2000 in November, 2002. With excellent technology and solid market service capabilities, we have both a sound marketing system and excellent service support system, which help us win confidence of customers both at home and abroad,we can provide drilling rig users with high quality professional air compressor solution and relative after-sales service also. |
>> Certification
>> FAQ
Q: Are you original manufacturer?
| Q: Which payment terms are available to us? | Q: Which Incoterms 2010 terms can we work? |
A: Yes, we JCDRILL is a official leading manufacture in drilling machinery in China and we have the whole series products you need. | A: T/T term or L/C term. On T/T term, 30% down payment is required in advance, and 70% balance shall be settled before shipment. On L/C term, a 100% irrevocable L/C without "soft clauses" can be accepted. | A: We JCDRILL are a professional and international company, accept all Incoterms 2010 terms, normally we work on FOB, CIF, CFR, CIP. |
| Q: How long will the delivery time take? | Q: How about after sales service? | Q:Spare Parts When You Need Them |
A: Normally products will take about 3-15 days to produce the ordered machines. Most of the time, we can have an immediate delivery of our regular machines in 15 days. | A: 365×24 Year-round Service We are committed to year-round 24-hour service even during holidays, in line with our policy of always providing "a response within 15 minutes and job completion within 24 hours." | A:We have spare parts centers across continents that stock specialist spare parts. We promise that spare parts will be delivered within 72 hours or no more than one week. |
