Basic Info.
Model NO.
0071
Transport Package
Wooden Case, Carton
Specification
51CRV4
Origin
China
Production Capacity
1000000 Pieces Per Year
Product Description

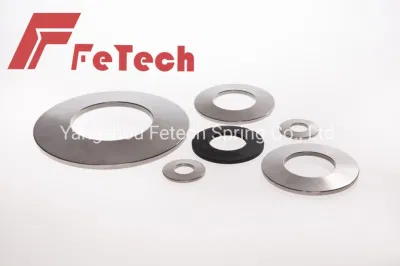

Disc Springs FeTech Disc Springs are similar to belleville springs with a frusto-conical shape and are typically used for critical loading or dynamic applications.
Some properties and advantages of FeTech Disc Spring are including:
- high load capacity with a small spring deflection
- increased fatigue life
- tight raw material specifications
- better use of space
- lower creep tendency with better heat treatment
- narrow tolerances of spring geometry and load
Specifications
- European DIN2093 standard disc springs
- Customizing off-standard disc springs: outer diameter from 6mm up to 800mm and thickness from 0.2mm up to 50mm that depends on different materials.
Materials
Standard Material: 50CrV4…
Corrosion Resistant Alloy Steel: SUS316/SUS631/Incoloy825…
Heat-stable Alloy Steel: 30WCrV17-2/X40CrMo5-1…
Antimagnetic and Corrosion Resistant Alloy: CuBe2…
Nickel and Cobalt Alloy Steel: Inconel X-750/Inconel718/Nimonic90…
Protective Surface Treatment
FeTech have many environmental surface treatment methods, like phosphatizing, hot-galvanizing, zinc plating, electrophoresis, DAC, GEOMET. If you expect other surface treatments, please contact us for more information.
Tolerance
Generally, FeTech comply with the standard tolerance of DIN2093 strictly. If you need the higher accuracy, please tell us and we can do it.
About Fetech
FeTech is a professional spring manufacturer, taking the conical spring washers as our core products, which are widely applied in various machinery and equipments, automotive,electricity applications, petroleum seal systems, and chemical industries, such as brakes, safety valves, transmissions, clutches, oil pipes, flanges. The conical washers have the effect of fastening, locking, sealing, compensating and so on.
FeTech takes DIN2092, DIN2093 as guideline of disc springs production, at the same time, we can produce the off-standard disc springs with O.D. from 6mm up to 800mm in order to meet customers' specific requirements. DIN6796 is the standard for FeTech's production of disc spring washers.
For satisfying the different working conditions, FeTech provides many choices of raw materials. For example, the general material 50CrV4; corrosion resistant material SUS301, SUS304, SUS316, SUS631; heat-stable material H13,X22CrMoV12-1; antimagnetic and corrosion resistant CuBe2; nickel and cobalt alloys S816, Nimonic90, Inconel X-750, Inconel 718.

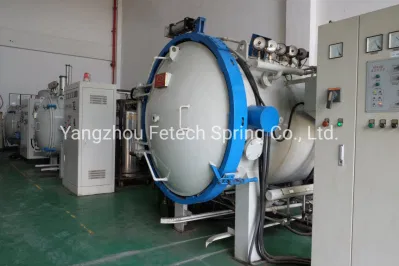

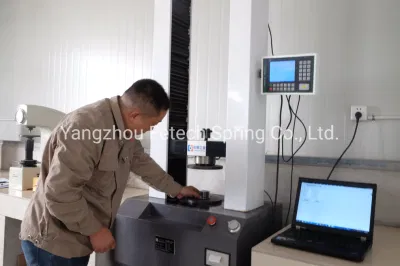

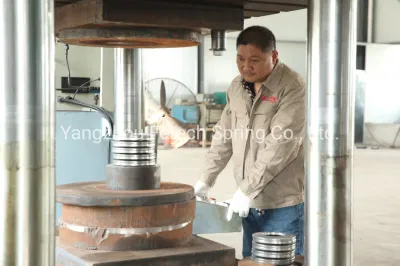

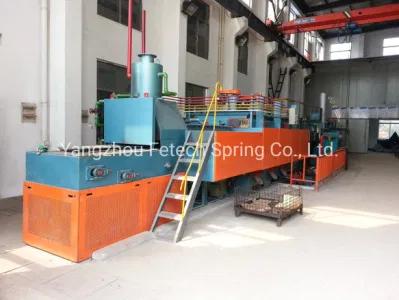

FeTech has the own plant for manufacturing, serval expert engineers, reliable workers and equipments, strict quality control, which are combined to ensure the best products. And the large stocks help us to meet the customers' needs in time. Our customers are including ABB, GM, Ferrari, Shanghai Electric, SINOPEC, CNPC. The manufacturing units of disc springs have been certified by ISO9001:2008. FeTech, bearing the dream of enterprises' soaring!
