Product Description
*40% silver, 09-18 contact plate is iron
*The base adopts V0-grade plastic particles to ensure the flame retardancy and strength of the material. Through the comparative test of glow wire, the plastic particles of the new product have high flame retardancy and do not burn.
*Pass the product drop test to avoid product damage due to falling within 1 meter (with packaging)
*The coil frame is made of V0 grade plastic, which can ensure the heat resistance of the coil
*High-quality enameled wire is adopted. The quality of the enameled wire is stable. The heat resistance grade of qa-1 / 155 coil is high, the temperature rise is ≤ 110k within the standard range, and the weight of coil turns is enough to ensure the stability of coil quality
*Increase the thickness of the edge silver layer and improve the service life of products
*Environmental protection iron core ensures dimensional consistency and product stability
*The key materials are customized to ensure the material stability, optimize the material of leaf spring, optimize the mechanical life to reach 1000 times, and the leaf spring is free from fracture

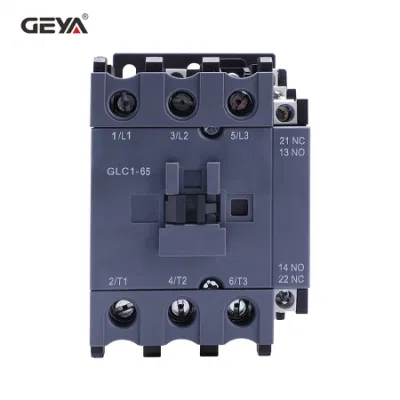

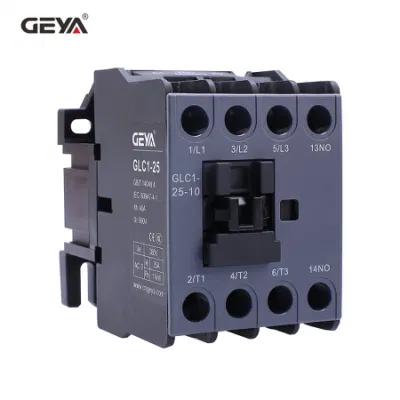

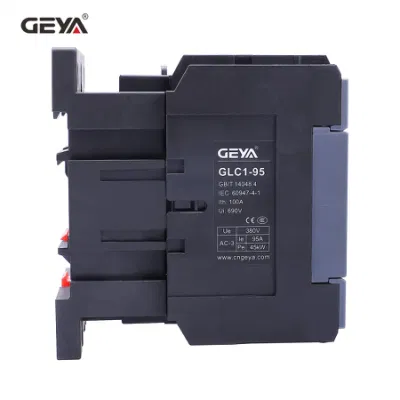

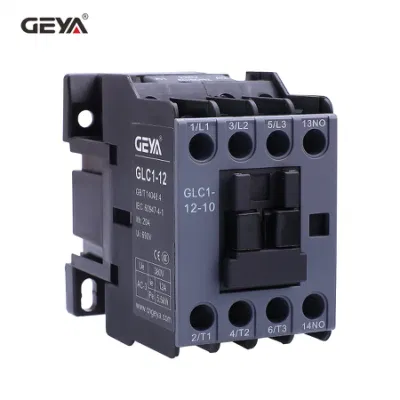

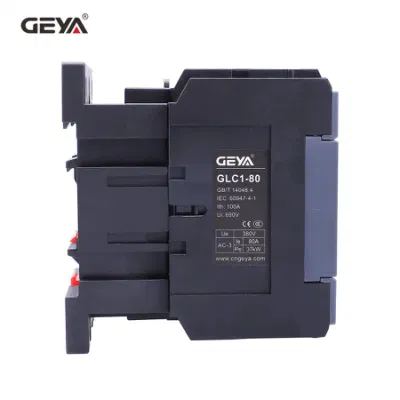

Contactor Model | GLC1-09 (09Z) | GLC1-12 (12Z) | GLC1-18 (18Z) | GLC1-25 (25Z) | GLC1-32 (32Z) | GLC1-40 (40Z) | GLC1-50 (50Z) | GLC1-65 (65Z) | GLC1-80 (80Z) | GLC1-95 (95Z) | |
Rated insulation voltage (Ui) | 690 | ||||||||||
Conventional thermal current(Ith) | 20 | 20 | 32 | 40 | 50 | 60 | 80 | 80 | 100 | 100 | |
Rated operating current(le) | 380V, AC-3 | 9 | 12 | 18 | 25 | 32 | 40 | 50 | 65 | 80 | 95 |
380V, AC-4 | 3.5 | 5 | 7.7 | 8.5 | 12 | 18.5 | 24 | 28 | 37 | 44 | |
660V,AC-3 | 6.6 | 8.9 | 10.6 | 18 | 21 | 34 | 39 | 42 | 49 | 49 | |
660V, AC-4 | 1.5 | 2 | 3.8 | 4.4 | 7.5 | 9 | 12 | 14 | 17.3 | 21.3 | |
Rated operating power(Pe) | 380V, AC-3 | 4 | 5.5 | 7.5 | 11 | 15 | 18.5 | 22 | 30 | 37 | 45 |
380V, AC-4 | 1.5 | 2.2 | 3 | 4 | 5 | 7.5 | 11 | 15 | 18.5 | 22 | |
660V,AC-3 | 5.5 | 7.5 | 9 | 15 | 18.5 | 30 | 33 | 37 | 45 | 45 | |
660V, AC-4 | 1.1 | 1.5 | 1.7 | 4 | 5.5 | 7.5 | 11 | 11 | 15 | 18.5 |
