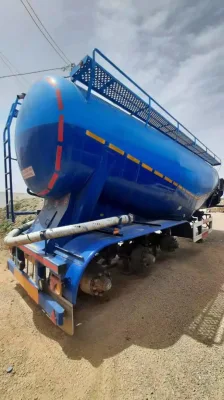

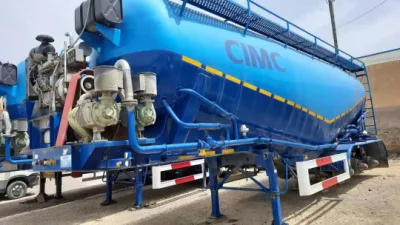

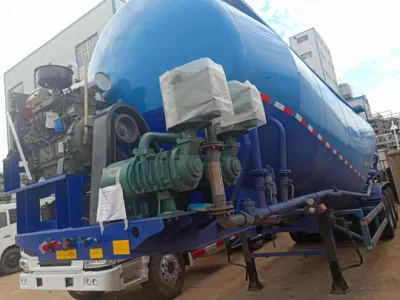

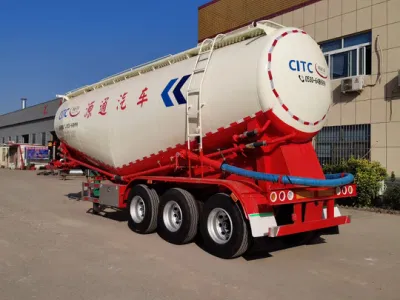

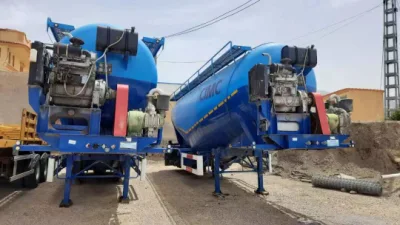

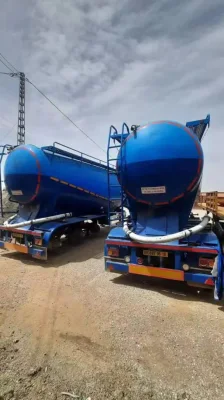

CIMC---3 Axle bulk cement Truck semi Trailer
Product Description:
| Tare weight | 10000kg |
| Size | 10700mm*2500mm*4000mm |
| Volume | 45M3 |
| Tank body | Q235A/5mm steel sheet |
| End plate | Q235A/6mm .ball shape |
| Axle | 3 axle FUWA brand 13T |
| Suspension | Mechanical suspension American type local brand |
| Leaf spring | Leaf spring 10pcs*90*13mm |
| Manhole cover | 500mm manhole cover .2 sets |
| Tire | 12R22.5 double star brand 12pcs |
| Wheel rim | 9.0-22.5 better brand 12pcs |
| Discharge valve | 4"disc valve |
| Discharge pipe | 4"seamless steel tube |
| Outlet pipe | 4"rubber hose.6m |
| Kingpin | JOST brand 2" bolt-in king pin |
| Landing gear | JOST brand two-speed, manual operating ,heavy duty landing gear 24T |
| Engine | Diesel engine: weichai brand model: 4102. |
| Air compressor | 37 KW, 0.2Mpa. 1000r/Min |
| Compartment | Single |
| Braking system | WABCO RE6 relay valve ;T30/30 spring brake chamber;40L air tanks |
| ABS | Optional |
| Light | LED 8 side lights and 2 rear lights 2 width lamp |
| Air-charging system | 2"main hole.2"check valve .1.5"safe valve.0.4Mpa.gauge |
| Quadratic blow | 1" diameter check valve |
| Painting | Complete chassis sand blasting to clean rust ,1coat of anticorrosive prime,2coats of final paint |
| Accessories | One standard tool box,one spare tire carrier,one crank,one shaft head wrench,four side light,two rear light |
| Date of delivery | 20 workdays after we received 30% of contract value T/T down payment. |
Configration:
Packaging & Shipping:
Nude and wax, shipped IN BULK or in Container.
We always use the best packaging solution to decrease transportation cost and giveyour the very competitive price.
Container transportaion will save you plenty of freight cost.
Trailer advantages description
· More than 20 years professional design and production experience.
·Choose Regular manufacturers purchase materials,like Q235 baoshan.
·Use Domestic first-class production equipment.
·Famouse brand trailer parts used,like bpw/fuwa axle,triangle/double star/double coin and so on tires,Air pressure test for each tanker.
·Strict quality control system ensure that each semi trailer is qualified.
