Basic Info.
Model NO.
3B6984
N.W.
19.5 Kg
Warranty
One Year
Pressure Ability
0.2-0.8 M PA
Air Inlet
20.5 Kg
G.W.
Black
Top Plate Diameter (Width)
210 mm
Bottom Plate Diameter (Width)
640 mm
Stroke of Rubber Bellows
640 mm
Bumper Block
Without
Screw (Nut)
M10
Transport Package
Cartons
Specification
70*70*35 cm
Trademark
GUOMAT
Origin
China
HS Code
8708809000
Production Capacity
5000PCS/Month
Product Description

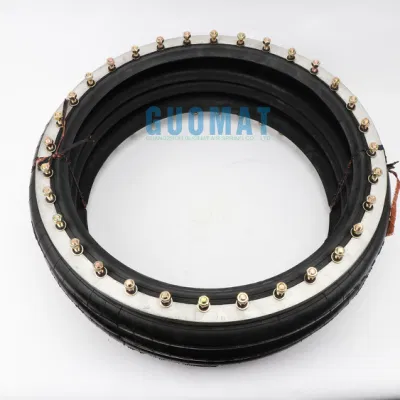

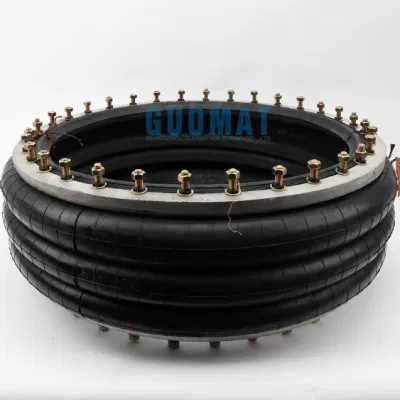

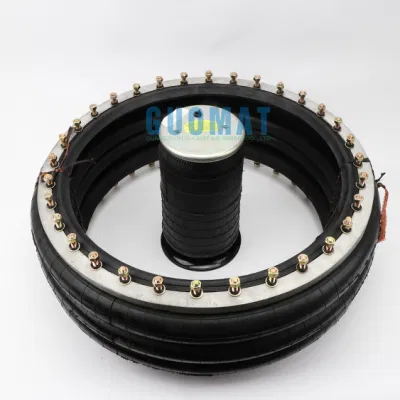

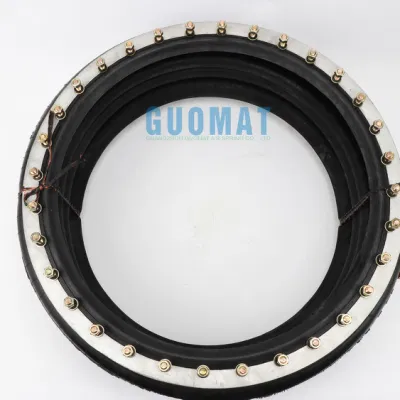

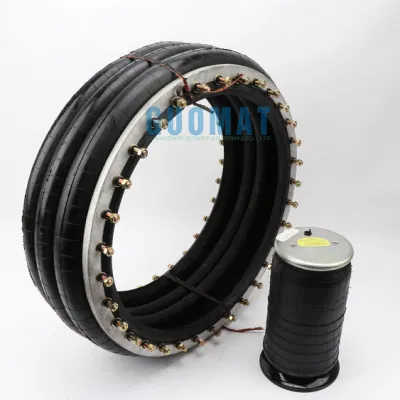

W01M586984 Fire stone Air Spring GUOMAT 3B6984 At 0.7 Mpa Max Dia 715mm For Industrial Big Load Machine
Main Products:Air Spring,Convoluted Air Spring,Industrial Air Springs,Air Suspension Spring,Air Compressor,Air Valve,Bus Rubber Bellows,Truck & Trailer Air Bags,Cabin Air Shock,Electric Water Pump
Main Products:Air Spring,Convoluted Air Spring,Industrial Air Springs,Air Suspension Spring,Air Compressor,Air Valve,Bus Rubber Bellows,Truck & Trailer Air Bags,Cabin Air Shock,Electric Water Pump
Detailed Product Description
| Material: | Aluminum Alloy And Rubber | GUOMAT: | W01-M58-6984 |
|---|---|---|---|
| Warranty: | 12 Months | Net Weight: | 19.5 KG |
| Other Name: | Industry Air Spring Isolator | Pressure Ability: | 0.2-0.8 M Pa |
| Gross Weight: | 20.5 KG | Flange Ring: | With Or Without |
| Connection Method: | Flange Connection | Flange Ring Size: | 638 Mm |
| BOLT CIRCLE DIA: | 596 Mm |
3B6984 Industrial Triple Convoluted Air Spring Specifications
Description Assembly
Description
Assembly Order No.
Style 321
Ribbed neck aluminum bead rings (equal spacing), 45 mm bolts, nuts, washers
W01-M58-6984
Two Ply Bellows
Rubber bellows only
W01-358-7919
| Manufacturer Part Number | Short Description W01-M58-6984, W01M586984, WO1-M58-6984, WO1M586984 | Bead ring Type | 4 |
| Maximum Diameter @ 7 Bar (mm) | 709 | Dim# C (Bolt Circle Diameter mm) | 597 |
| Maximum Height (mm) | 114 | # of Bolts (each ring) | 32 |
| Maximum Stroke (mm) | 361 | Design Height (mm) | 381 |
| Minimum Usable Height (mm) | 475 | 3 Bar (kN) | 78.5 |
| 25 mm (kN) | 174.6 | 5 Bar (kN) | 132.9 |
| 50% of Max Stroke (kN) | 150 | 7 Bar (kN) | 187.9 |
| Maximum Stroke (kN) | 106.5 | Natural Frequency (@5 Bar)(fn(Hz) | 1.2 |
| Applicable Technigram? | 113 | 7 Hz | 97 |
| Material | 2-Ply, High Strength Cord | 13 Hz | 99.3 |
| 25 Hz | 99.8 |
Assembly Height (mm)
| 440 | 400 | 360 | 320 | 280 | 240 | 200 | 160 | |
| Volume @ 7 BAR (cu cm) | 135784 | 125615 | 114722 | 102796 | 90465 | 77839 | 64589 | 50778 | |
| EFF Area @ 7 BAR (cm sq) | 2394 | 2596 | 2757 | 2897 | 3026 | 3151 | 3277 | 3407 | |
kN Force
| @3 BAR
| 67.39 | 74.50 | 80.12 | 84.65 | 88.33 | 91.63 | 95.16 | 99.35 |
@4 BAR
| 92.19 | 101.14 | 108.37 | 114.48 | 119.71 | 124.49 | 129.35 | 134.85 | |
@5 BAR
| 116.52 | 127.36 | 136.16 | 143.61 | 150.09 | 156.08 | 162.19 | 168.98 | |
@6 BAR
| 143.26 | 155.70 | 165.72 | 174.35 | 182.12 | 189.54 | 197.05 | 204.99 | |
@7BAR
| 167.54 | 181.66 | 192.94 | 202.76 | 211.80 | 220.56 | 229.36 | 238.43 |
| Dynamic Characteristics at 380 mm Design Height (Required for Airmount isolator design only) | |||
Gauge Pressure (BAR) | Load (KN) | Spring Rate (kN/m) | Natural Frequency Hz |
| 3 | 77.48 | 465 | 1.22 |
| 4 | 104.95 | 592 | 1.18 |
| 5 | 132.00 | 716 | 1.16 |
| 6 | 160.98 | 839 | 1.14 |
| 7 | 187.60 | 954 | 1.12 |
| Flange connection type of air spring model comparison table | |||
| GUOMAT NO. | Contitech NO. | GUOMAT NO. | Contitech NO. |
| FS22-3DICR | FS 22-3 DI CR | FS960-12RS | FS 960-12 RS |
| FS44-5DICR | FS 44-5 DI CR | FS1330-11RS | FS 1330-11 RS |
| FS76-7DICR | FS 76-7 DI CR | FS1710-12RS | FS 1710-12 RS |
| FS76-7DSCR | FS 76-7 DS CR | FS2870-16RS | FS 2870-16 RS |
| FS138-8DS | FS 138-8 DS | FS5450-16RS | FS 5450-16 RS |
| FS210-10DS | FS 210-10 DS | FD960-22RS | FD 960-22 RS |
| FS412-10DS | FS 412-10 DS | FD1120-30RI | FD 1120-30 RI |
| FS614-13DS | FS 614-13 DS | FD1330-25RS | FD 1330-25 RS |
| FS816-15DS | FS 816-15 DS | FD1710-25RS | FD 1710-25 RS |
| FD22-4DICR | FD 22-4 DI CR | FD1730-40RI | FD 1730-40 RI |
| FD44-10DICR | FD 44-10 DI CR | FD2380-24RS | FD 2380-24 RS |
| FD76-14DICR | FD 76-14 DI CR | FD2470-40RI | FD 2470-40 RI |
| FD76-14DSCR | FD 76-14 DS CR | FD2870-30RS | FD 2870-30 RS |
| FD138-18DS | FD 138-18 DS | FD5450-28RS | FD 5450-28 RS |
| FD209-21DS | FD 209-21 DS | FT960-34RS | FT 960-34 RS |
| FD210-22DS | FD 210-22 DS | FT1330-35RS | FT 1330-35 RS |
| FD412-18DS | FD 412-18 DS | FT1710-38RS | FT 1710-38 RS |
| FD614-26DS | FD 614-26 DS | FT2870-45RS | FT 2870-45 RS |
| FD816-30DS | FD 816-30 DS | FT5450-44RS | FT 5450-44 RS |
| FT22-6DICR | FT 22-6 DI CR | ||
| FT44-15DICR | FT 44-15 DI CR | ||
| FT76-20DICR | FT 76-20 DI CR | ||
| FT76-20DSCR | FT 76-20 DS CR | ||
| FT138-26DS | FT 138-26 DS | ||
| FT210-32DS | FT 210-32 DS | ||
| FT412-32DS | FT 412-32 DS | ||
| FT614-36DS | FT 614-36 DS | ||
| FT816-40DS | FT 816-40 DS | ||
