Basic Info.
Model NO.
ZZ4257V324HC1B
Horsepower
351-450hp
Engine Capacity
＞8L
Tire Certification
ECE, ISO
Tire Design
Tubeless
Condition
New
Brand
Sinotruk
Engine
Mc11.43-30
Tyre
315/80r22.5 Tubeless
Transport Package
Bulk RO-RO
Specification
CE CCC
Trademark
T7H
Origin
Shandong
HS Code
465665
Production Capacity
200 Uints
Product Description

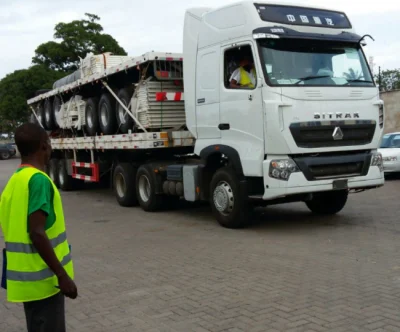

SINOTRUK T7H 6X4 430hp Tractor Truck for sale
Option: Right Hand Driving Type
Option: Right Hand Driving Type
| Model | ZZ4257V324HC1B | |
| Engine | Make: SINOTRUK high pressure common-rail fuel injection system Diesel: 4 stroke diesel engine Engine model: MC11.43-30, Euro III emission standard 6 cylinder in-line with water cooling, turbo-charging & intercooling Maximum output: 430hp (316Kw) at 2000 rpm Maximum torque: 2100Nm at 1000~1400 rpm Displacement: 10.518L Bore: 120mm; Stroke: 155mm Compression ratio:19:1; Engine oil filling quantity: 40L Thermostat with 83 oC opening begin; Single cylinder air compressor Visco fan | |
| Clutch | Single- plate dry diaphragm spring clutch, diameter 430 mm, hydraulically operating with air assistance | |
| Transmission | Transmission, model HW19712CL, 12 forward and 2 reverse, with aluminium housing Ratio:11.80 9.17 7.10 5.61 4.38 3.44 2.70 2.10 1.62 1.28 1.00 0.79 10.85/2.48(R) | |
| Propeller Shaft | Double universal joint propeller shaft with gear-shaped coupling flange | |
| Front Axle | Steering with double T-cross section beam, with disc brake system, | |
| Rear Axles | Pressed axle housing, central single reduction, and differential locks between axles Ratio: 4.11 | |
| Chassis | Frame: U-profile parallel ladder with section of 270×86×8 mm, all cold riveted cross members Front suspension: 3 leaf springs with hydraulic telescopic double-action shock absorbers and stabilizer Rear suspension: 5 leaf springs with bogie spring and stabilizer Spare wheel carrier: with one spare wheel Fuel tank: with one 560 L fuel tank with locking fuel cap Fifth wheel size: 3.5 inch | |
| Steering | RHD ZF power steering, model ZF8098 , hydraulic steering with power assistance Ratio: 22.2-26.2 | |
| Brakes | Front disc rear drum brake, four-circuit protection valve, Service brake: dual circuit compressed air brake Parking Brake(emergency brake): spring energy, compressed air operating on rear wheels Auxiliary brake: Engine exhausts brake. With ABS system | |
| Wheel & Tyres | Rims: 9.0-22.5,10 hole-steel Tyres: Pirelli 315/80R22.5 Tubeless | |
| Driver's cab | High-floor high cab, adjustable steering wheel with various heights and angles, 2-arm windscreen wiper system with 3 speeds, VDO electrical control system, hydraulically damped adjustable driver's seat, rigid adjustable co-driver's seat, heating & ventilation system, exterior sun visor, stereo radio, safety belts, air horn, air conditioner, and double berths with 4-point support fully floating suspension and air suspension with transverse stabilizer, MP3 machine,cruising combined switch | |
| Electrics | Operating voltage:24V, negative grounded; Starter: 24V, 5.5KW Alternator: 3-phrase, 28V, 2240W; Batteries: 2×12, 165Ah Cigar-lighter, horn, headlamp, fog light, brake lights, indicators and reverse lamp | |
| Dimensions in mm | Wheel base Front wheel track Rear wheel track Front overhang Rear overhang Approach angle(o) Departure angle(o) Overall Dimension | 3200+1400 2041 1830 1540 845 15 46 7000×2500×3900 mm |
| Weight in kg | Dead weight Permissible loading capacity at fifth wheel Gross vehicle weight Gross combination weight Front axle loading capacity Rear axle loading capacity | 8800 24200 33000 70000 7000 13000×2 |
| Performance | Maximum driving speed(km/h) Maximum gradeablility (%) Minimum ground clearance(mm) Minimum turning circle(m) Fuel consumption(L/100km) | 101 36 258 18 41 |
