Basic Info.
Model NO.
ZZ
Power
Diesel
Drive Wheel
6×6
Seats
≤5
Horsepower
＞450hp
Engine Capacity
＞8L
Tire Certification
ISO
Tire Design
Tubeless
Condition
New
Colour
Optional
Logo
Can Be Designed as Customers′ Option
Driving Type
LHD/Rhd
Displacement
9.726L
Transport Package
Nude
Specification
ISO
Trademark
HOWO
Origin
China
Production Capacity
2000
Product Description
Specifications
Heavy duty truck 6x6 howo cargo truck
1.6x6 driving type
2.336hp available
3. Advanced technology
4. Wonderful functions
All wheel drive truck

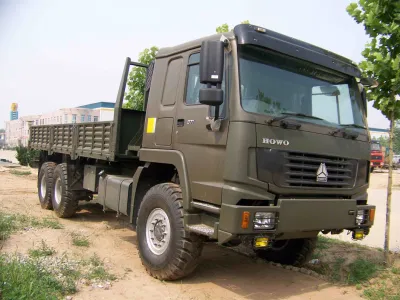

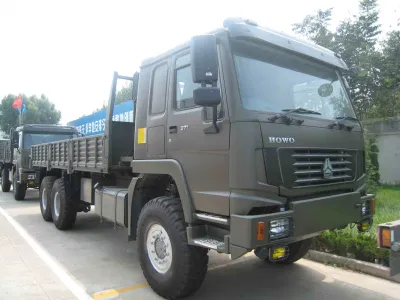

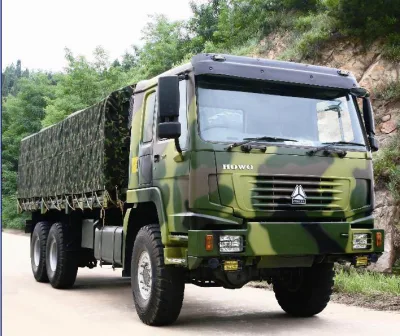

CNHTC HOWO 6X6 all wheel drive cargo truck / truck chassis for sale
1. Emission: Euro 4
2. All wheel drive truck

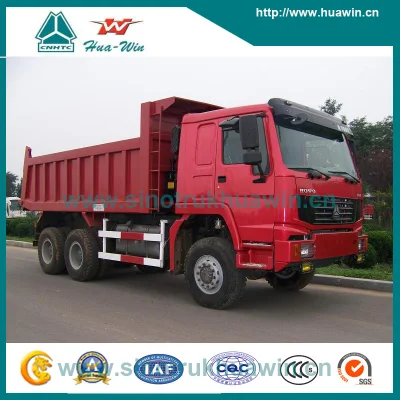

CNHTC HOWO all drive dump truck chassis for sale
Specification:
1. Cab type is HW 76, HOWO longer cab, with air condition.
2. Can optional CNHTC WD615 euro 3 and CNTHC euro 2.
3. High cost performance.
4. Steel axle and different suspension.
5. Tire type are tubeless, radial, bias you can also optional.
Heavy duty truck 6x6 howo cargo truck
1.6x6 driving type
2.336hp available
3. Advanced technology
4. Wonderful functions
All wheel drive truck
CNHTC HOWO 6X6 all wheel drive cargo truck / truck chassis for sale
1. Emission: Euro 4
2. All wheel drive truck
CNHTC HOWO all drive dump truck chassis for sale
Specification:
1. Cab type is HW 76, HOWO longer cab, with air condition.
2. Can optional CNHTC WD615 euro 3 and CNTHC euro 2.
3. High cost performance.
4. Steel axle and different suspension.
5. Tire type are tubeless, radial, bias you can also optional.
| Engine | Make: SINOTRUCK | |
| Diesel: 4-stroke direct injection diesel engine | ||
| Engine model: WD615.87, Euro II or Euro III(EGR), WD615.93Eemission standard | ||
| 6-sylinder in-line with water cooling, turbo-charging and intercooling | ||
| Maximum output: 290hp (213kW) at 2200rpm | ||
| Displacement: 9.726L | ||
| Bore: 126mm | ||
| Stroke: 130mm | ||
| Compression ratio: 17.5: 1 | ||
| Specific fuel consumption: 195g/kWh | ||
| Engine oil fillingquantity (long-term filling): 40L | ||
| Thermostat with 80° C opening begin | ||
| Twin sylinder air compressor | ||
| Rigid fan | ||
| Option: Thermostat with 71° C opening begin | ||
| Visco fam | ||
| Cold start with electro-heater | ||
| Clutch | Single-plate dry coil-spring clutch, diameter 420mm, hydraulically operating with air assistance | |
| Transmissin | Model: RT11509C | |
| Ratro: 11.40 , 7.94 , 5.63 , 4.06 , 2.81 , 1.96 , 1.39 , 1.00 , 11.35R | ||
| Option: 5S-150GP | ||
| Propeller Shaft | Double universal joint propeller shaft with gear-shaped coupling flange | |
| Front Axle | Steering with double T-cross section beam | |
| Rear Axles | Pressed axle housing, single reduction with hub reduction and differential locks between axles and wheels | |
| Ratio: 5.73 | ||
| Chassis | Frame: U-profile parallel ladder frame with section of 243× 80× 8mm and reinforced subframe, all cold reveted cross members | |
| Front suspension: 12 semi-elliptic leaf springs with hydraulic telescopic double-action shock absorbers and stabilizer | ||
| Rear suspension: 12 leaf semi-elliptic springs with bogie springs | ||
| Fuel tank: 400L capacity with locking fuel cap, fitted to the off side of the chassis | ||
| Spare wheel | ||
| Steering | ZF8098, hydraulic steering with power assistance | |
| Ratio: 22.2-26.2 | ||
| Braking System | Service brake: dual circuit compressed air brake | |
| Parking brake(emergency brake): spring energy, compressed air operating on rear wheels | ||
| Auxiliary brake: engine exhaust brake | ||
| Option: ABS | ||
| Wheel Types | Rims: 8.5-20, 10 hole-steel | |
| Tyres: 12.00-20 | ||
| Option: 12.00R20 11.00-20 11.00R20 14.00-20 | ||
| Cab | Standard cab | |
| Electrical System | Operating voltage: 24V, negative grounded | |
| Starter: 24V, 7.5kW | ||
| Alternator: 3-phrase, 28V, 1500W | ||
| Batteries: 2× 12V, 162Ah/180Ah | ||
| Cigar-lighter, horn, headlamps, fog lights, brake lights, indicators and reverse light | ||
| Instrument Panel | Active check control with indicators, with this instrument the daily manual checks on the vehicle and combined indicators of compressed air pressure, coolant temperature, engine oil pressure and battery charging | |
| Dimensions in mm | Wheel base | 3500+1400 |
| Front wheel track | 2022/2041 | |
| Rear wheel track | 1850 | |
| Front overhang | 1578 | |
| Rear overhang | 725 | |
| Approach angle(° ) | 32 | |
| Departure angle(° ) | 70 | |
| Overall length | 8368 | |
| Overall width | 2496 | |
| Overall height | 3200 | |
| Cargo body size | 6568× 2300× 800 | |
| Weight in kg | Permissible loading capacity | 20000 |
| Chassis dead weight | 9670 | |
| Gross vehicle weight | 25000 | |
| Front axles loading capacity | 7000 | |
| Rear axles loading capacity | 2× 13000 | |
| Performance | Maximum driving speed(km/h) | 67 |
| Maximum gradeability(%) | 40 | |
| Minimum ground clearance(mm) | 298 | |
| Minimum truning circle(m) | 14.5 | |
| Fuel concumption(L/100 km) | 40 | |
