Basic Info.
Product Description
1. Main Specification
1.6x6 driving type
2.336,371 available
3. Advanced technology
4. Wonderful functions
5. CNHTC WD615 euro 3 and CNTHC euro 2 optional
All wheel drive military cargo truck
2. Technical Parameters
Engine | Make: SINOTRUCK | |
Diesel: 4-stroke direct injection diesel engine | ||
Engine model: WD615.87, Euro II or Euro III(EGR), WD615.93Eemission standard | ||
6-sylinder in-line with water cooling, turbo-charging and intercooling | ||
Maximum output: 290hp (213kW) at 2200rpm | ||
Displacement: 9.726L | ||
Bore: 126mm | ||
Stroke: 130mm | ||
Compression ratio: 17.5: 1 | ||
Specific fuel consumption: 195g/kWh | ||
Engine oil fillingquantity (long-term filling): 40L | ||
Thermostat with 80° C opening begin | ||
Twin sylinder air compressor | ||
Rigid fan | ||
Option: Thermostat with 71° C opening begin | ||
Visco fam | ||
Cold start with electro-heater | ||
Clutch | Single-plate dry coil-spring clutch, diameter 420mm, hydraulically operating with air assistance | |
Transmissin | Model: RT11509C | |
Ratro: 11.40 , 7.94 , 5.63 , 4.06 , 2.81 , 1.96 , 1.39 , 1.00 , 11.35R | ||
Option: 5S-150GP | ||
Propeller Shaft | Double universal joint propeller shaft with gear-shaped coupling flange | |
Front Axle | Steering with double T-cross section beam | |
Rear Axles | Pressed axle housing, single reduction with hub reduction and differential locks between axles and wheels | |
Ratio: 5.73 | ||
Chassis | Frame: U-profile parallel ladder frame with section of 243× 80× 8mm and reinforced subframe, all cold reveted cross members | |
Front suspension: 12 semi-elliptic leaf springs with hydraulic telescopic double-action shock absorbers and stabilizer | ||
Rear suspension: 12 leaf semi-elliptic springs with bogie springs | ||
Fuel tank: 400L capacity with locking fuel cap, fitted to the off side of the chassis | ||
Spare wheel | ||
Steering | ZF8098, hydraulic steering with power assistance | |
Ratio: 22.2-26.2 | ||
Braking System | Service brake: dual circuit compressed air brake | |
Parking brake(emergency brake): spring energy, compressed air operating on rear wheels | ||
Auxiliary brake: engine exhaust brake | ||
Option: ABS | ||
Wheel Types | Rims: 8.5-20, 10 hole-steel | |
Tyres: 12.00-20 | ||
Option: 12.00R20 11.00-20 11.00R20 14.00-20 | ||
Cab | Standard cab | |
Electrical System | Operating voltage: 24V, negative grounded | |
Starter: 24V, 7.5kW | ||
Alternator: 3-phrase, 28V, 1500W | ||
Batteries: 2× 12V, 162Ah/180Ah | ||
Cigar-lighter, horn, headlamps, fog lights, brake lights, indicators and reverse light | ||
Instrument Panel | Active check control with indicators, with this instrument the daily manual checks on the vehicle and combined indicators of compressed air pressure, coolant temperature, engine oil pressure and battery charging | |
Dimensions in mm | Wheel base | 3500+1400 |
Front wheel track | 2022/2041 | |
Rear wheel track | 1850 | |
Front overhang | 1578 | |
Rear overhang | 725 | |
Approach angle(° ) | 32 | |
Departure angle(° ) | 70 | |
Overall length | 8368 | |
Overall width | 2496 | |
Overall height | 3200 | |
Cargo body size | 6568× 2300× 800 | |
Weight in kg | Permissible loading capacity | 20000 |
Chassis dead weight | 9670 | |
Gross vehicle weight | 25000 | |
Front axles loading capacity | 7000 | |
Rear axles loading capacity | 2× 13000 | |
Performance | Maximum driving speed(km/h) | 67 |
Maximum gradeability(%) | 40 | |
Minimum ground clearance(mm) | 298 | |
Minimum truning circle(m) | 14.5 | |
Fuel concumption(L/100 km) | 40 |

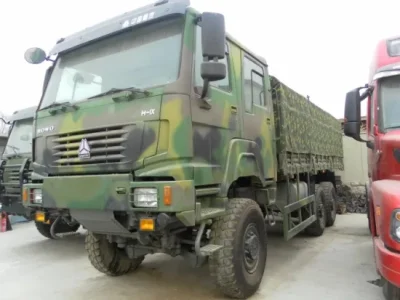

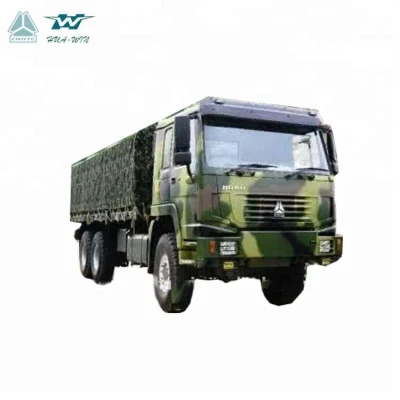

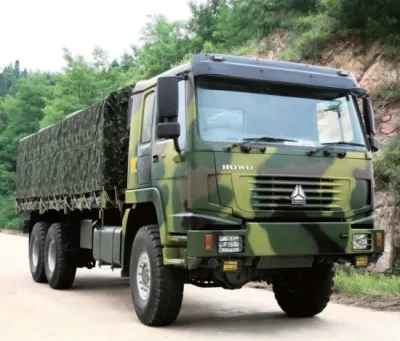

3. Products Photos
![Sinotruk HOWO 6X6 All Wheel Drive 371 HP Cargo Truck](http://img6.grofrom.com/www.zhiyuspringgroup.com/226f3j00zeAtCRSaJIuL/Sinotruk-HOWO-6X6-All-Wheel-Drive-371-HP-Cargo-Truck.webp)
4. Who we are(Company introduction)
SINOTRUK is one of the largest heavy duty truck manufacturers in China, also the No. 1 for exporting. Now SINOTRUK has already exported trucks to more than 150 countries, WE, SINOTRUK HUAWIN, is SINOTRUK branch factory, located in Hubei Province, professional in producing different special vehicles.
![Sinotruk HOWO 6X6 All Wheel Drive 371 HP Cargo Truck](http://img6.grofrom.com/www.zhiyuspringgroup.com/226f3j00zeAtBWKUHLgP/Sinotruk-HOWO-6X6-All-Wheel-Drive-371-HP-Cargo-Truck.webp)
![Sinotruk HOWO 6X6 All Wheel Drive 371 HP Cargo Truck](http://img6.grofrom.com/www.zhiyuspringgroup.com/226f3j00gMdaBSZhADpI/Sinotruk-HOWO-6X6-All-Wheel-Drive-371-HP-Cargo-Truck.webp)
5. What we do(Main Products)
1.Tractor truck / Dump Truck
2. Fire Fighting Truck / LPG Truck / LPG Tanker
3. Truck with crane / Truck mounted crane
4. Oil Tank Truck / Water truck / Water Sprinkler Truck
5. Concrete Mixer Truck / Bulk cement truck
6. Van truck / Cargo truck / Refrigeration truck
7. Recovery truck, High-altitude operation truck, Self loading garbage, Compactor garbage truck, Sewaging truck.
8. Semi Trailer ( Flat bed semi trailer / Dump semi trailer / Side wall semi trailer / Low bed trailer / Fuel tanker semi trailer. etc. )
6. Our Advantages
1) Reliable Quality: After working with top companies in truck industry like STEYR, MAN, VOLVO, with years of manufacturing experience and SINOTRUK group full range inspection system, a series inspections are well done before the exportation to ensure reliable quality.
2) Favorable price: Factory price, very competitive in the market. We, SINOTRUK Hubei Huawin is SINOTRUK branch factory.
3) In time Warranty: One year or 100,000km for on road trucks as tractor truck or 6 months or 60,000km for off road trucks as dump truck, which comes to the first for the engine, gear box, and axles. We have offices in Tanzania, Zambia and Philippines to provide warranty service, and we have distributors in different countries all over the world to assist.
4) In time After-sales: We have set up over 240 spare parts centers and service outlets all over 80 countries, professional after-sales team solve your after sales problem within 3 working days or 5 working days, and all spare parts are available for you.
5) Experienced sales team and logistics team: Experienced sales team are at your service all the time and offer excellent service, professional logistics team work with international shipping company such as MSK&Hyundai to ship your trucks safely and cost-efficiently.
7. FAQ
Q1.Are you manufacture or trade company? How to buy from you?
Q2. What are your terms of payment?
A: 30% as deposit, and 70% before shipment, all by T/T.
B: 30% as deposit, and 70% against B/L copy, all by T/T
C: 30% as deposit by T/T, 70% by L/C before shipment.
D: 100% L/C before production.
Q3. What trade terms do you have?
A: FOB, CFR, CIF, DAF
Q4. What's the delivery time?
A: Generally, it will take 35-45 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Q5. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
8. Shippment Methods
![Sinotruk HOWO 6X6 All Wheel Drive 371 HP Cargo Truck](http://img6.grofrom.com/www.zhiyuspringgroup.com/226f3j00PvAEBaZohHuD/Sinotruk-HOWO-6X6-All-Wheel-Drive-371-HP-Cargo-Truck.webp)
9. You are always to visit our factory!
![Sinotruk HOWO 6X6 All Wheel Drive 371 HP Cargo Truck](http://img6.grofrom.com/www.zhiyuspringgroup.com/226f3j00DvwtBujyAPpH/Sinotruk-HOWO-6X6-All-Wheel-Drive-371-HP-Cargo-Truck.webp)
