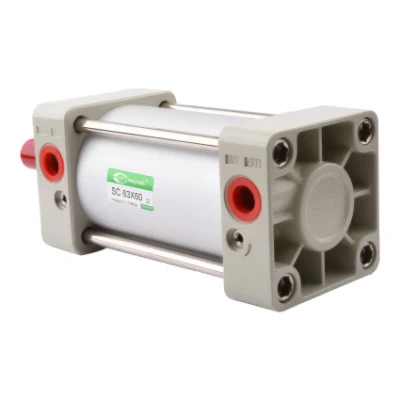

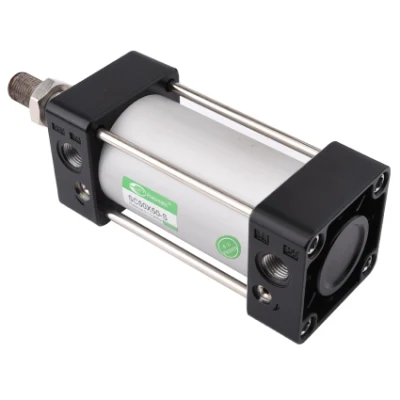

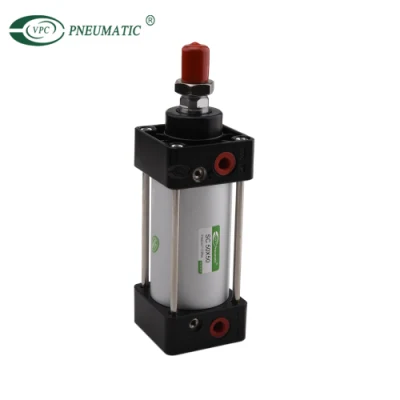

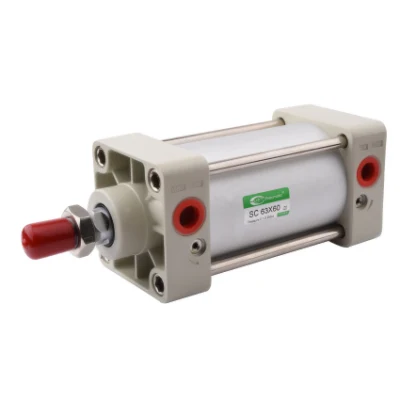

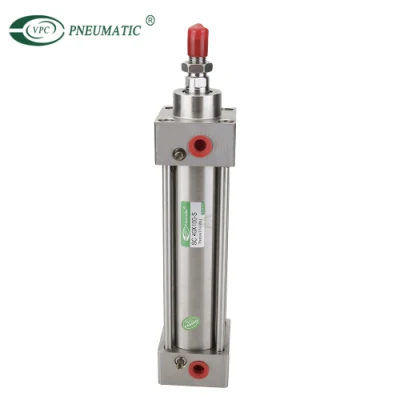

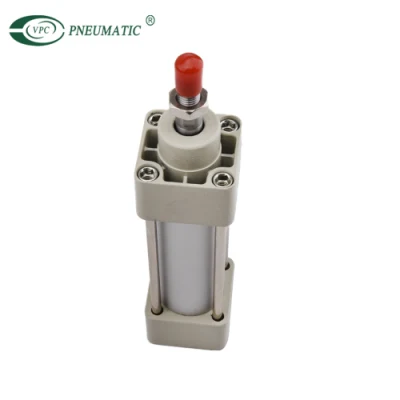

Product Description
- 5 sizes from 1 ½" to 4" for the common sizes
- Complies with NFPA standard and allows easy replacement in existing machines, ideal for MRO
- 303 stainless steel piston rod and tie-rods combined with anodized Al barrel and end caps give great durability and corrosion protection
- FPM sealing option for additional chemical resistance and tough high temperature applications
- Numerous NFPA mounting options offer maximum flexibility
| Bore(mm) | 32 | 40 | 50 | 63 | 80 | 100 | 125 | 160 | 200 | |
| Acting type | Double acting | |||||||||
| Working medium | Clean air(40um Filteration) | |||||||||
| Mounting type | SU/SC Series | Basic type FA FB CA CB CR LB TC TC-M | ||||||||
| SCD/SUD Series | Basic type FA LB TC TC-M | |||||||||
| SCJ/SUJ Series | Basic type FA LB TC TC-M | |||||||||
| Guaranteed pressure | 1.5Mpa | |||||||||
| Working pressure range | 0.1-0.9Mpa | |||||||||
| Working temperature | -5~70ºC | |||||||||
| Speed Range | 50-800mm/s | |||||||||
| Cushion type | adjustable cushion | |||||||||
| Cushion stroke | 20mm | 32mm | 45mm | |||||||
| Port size | G1/8 | G1/4 | G3/8 | G1/2 | G3/4 | |||||
Ningbo VPC Pneumatic company is dedicated to providing the highest quality hydraulic and pneumatic products in order to assure we achie requisite level of product performance, reliability and value for our customers.We manufacture and export Pneumatic Cylinders,Directional s Valves,air fittings,air hose,air preparation unitspressure regulators,etc pneumatic automation components,these are widely used in automa industrial,robots, packaging equipment, blow molding machine equipment and Medical Industry,food and beverage, metals, mining and min sciences, automotive,marine,transportationwood, paper and printing industries
Export to Europe,latin america the USA,South Asia and middle East,because of high quality,
As a 20 years manufacture,we can rovide professional solutions according to your application needs and use industry.Here are what we can with you
1:Customized products to save your costs
2:Fast delivery and standard package
3:200% test before ship
4:CE/ROHS/ISO/FDAcertificate
Express(DHL,UPSTNTFEDEX) are all available. Sea and Air transports are available
The most suilable transport way will be chosen for you.
Q1. What is the ISO standard for the pneumatic cylinder?
The ISO 6431 cylinder standard refers to the dimensions of the basic product and the size of the cylinder when mountings and accessories are applied.
Q2. What is stroke size in pneumatic cylinder?
The cylinders are available in bores of 32, 40, 50, 63, 80, 100 and 125 mm, with stroke lengths from 10 mm to 100mm. Single-acting cylinders with spring return in the retract direction are available in stroke lengths up to 80 mm.
Q3. How do I increase the pressure in my pneumatic cylinder?
Another way to increase or decrease the forces generated by the cylinder is to choose a cylinder with either a more significant (Greater force) or smaller (Less force) diameter. Remember, the larger the diameter, the greater the surface area of the piston, and the greater the pressure.
Q4. How do you adjust air cylinder speed?
When the cylinder piston extends, the air behind it is compressed because air can't escape easily. When you tighten the flow control screw, the movement of the piston slows down because air is restricted even further. Controls the speed of a cylinder or restricts air flow. Simply turn the needle valve to adjust air speed.
Q5. How do you calculate pneumatic cylinder force?
Use the cylinder diameter (d) to calculate the cylinder working area (A), which is A = π × d² / 4.
Determine the working pressure (P) inside the cylinder.
Multiply the pressure (P) by the area (A). In that way, you calculate the pneumatic cylinders theory push force (F), F = P × A.
-pneumatic cylinder force calculator
Q6: Do you sell pneumatic cylinder repair kits?
Yes, we sell all types of cylinder repair kits and other accessories. Please get in touch with us if you need any.
