Basic Info.
Product Description

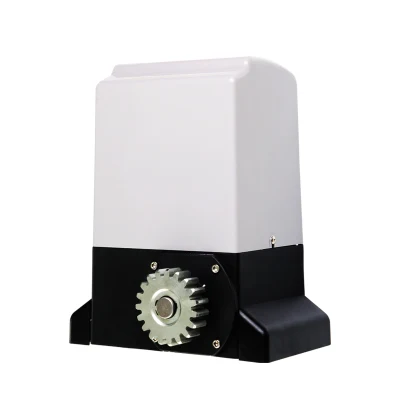

Remote Control 1000kg Automatic Gate Opener Electric Sliding Gate MotorMotor
Technical Parameters
| Max. Gate Weight | 500KG | 800KG | 1000KG |
| Motor Voltage | AC230V 50Hz(AC120V 60Hz) | ||
| Working System | S4-25% | ||
| Running Time | 10 min | ||
Functions | 1.Soft start and soft stop 2.Resistance stop 3.Overloead protection 4.Infrared protection 5.Reserve power | ||
| Limit switch | Spring/magnetic (NC/NO) | ||
| Application | Residential, commercial, and courtyard | ||
| Dimension | 270*155*315mm | ||
| Gate Moving Speed | 12m/min | ||
| Operating Temperature | -45ºC ~ +65ºC | ||

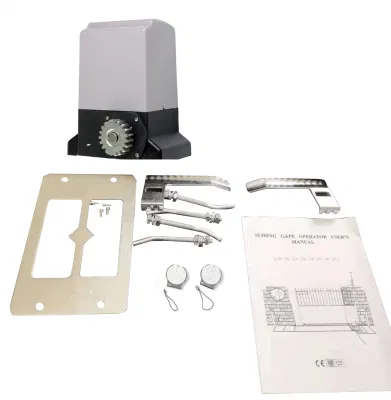

| Standard Configuration | 1*motor,1*control panel,2*manual Override Keys ,remotes,fixing hardware | ||
| Optional Accessories | Alarm lamp, mounting plate, wireless keypad, wireless wall button, etc | ||
| Certificates | CE,CCC | ||

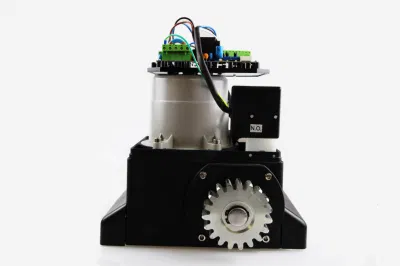

Product Details
Product Features

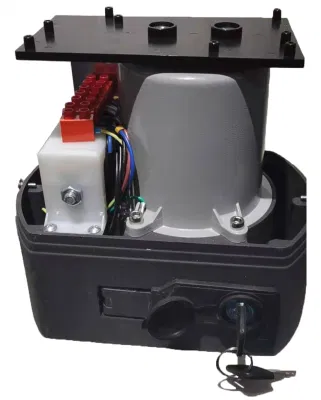

| A.Brushless waterproof motor:High-speed pure copper core powerful motor.More stable operation and super mute. |

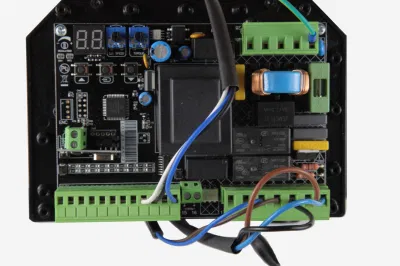

| B.Control chip:Multi-function wiring port,multi-speed adjustment,resistance adjustment, door closing delay adjustment,Super large transformer,more convenient functions. |
| C.The ultra-quiet system:provides a long operating life with minimum maintenance requirement. |
| D.Install infrared sensor:By installing an infrared anti-induction device,if the door opener deters an obstacle within the monitoring range during the closing process, the door opener stops closing and opens immediately. |
| E.Equipped with manual release key :in case of power outage or when you lose your remote. |
| F.It can be used on 230V/110V/24V. |

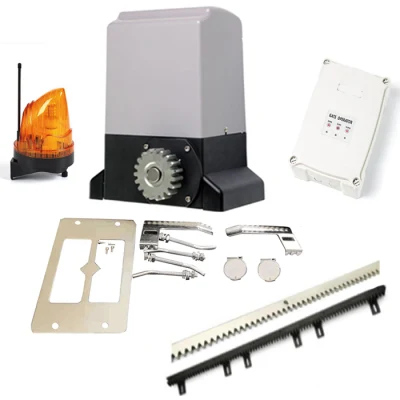

Optional Accessories
Appliction
It can be installed on various stainless steel doors, iron art doors, copper art doors and solid wood doors.
Typical application includes residential, commercial, and courtyard.
Installation Overview
Why Choose Us
| 1. The world's leading swing door operator manufacture in China.Daliy production over 500PCS. |
| 2. The factory has three production base located in ZHEJIANG ,ANHUI,JIANGSU three province. The area cover 72,000 square meters. |
| 3. Over 14 years producing experience in swing door operator. Ripe production process. |
| 4. Impeccable testing system covered from raw material,components,semi-finished products. |
| 5. HAIDA has own national test laboratory (Intertek Satellite Lab) to make sure the growth of our company. |
Workshop&Lab
Since the enterprise was founded, we constantlyimproved the enterprise infrastructure, introduced from abroad a number of advanced productionlines; This ensures our strong manufacture ability.Standardized setting of technological process keep every link in order;
Strict supervision and inspection system establishes firm foundation of high quality.
Office & Employees
FAQ
Q:What is the minimum quantity ?
We can sell even 1PCS
Q:How many sliding gate models do you have?
We have 500kg,800kg,1000kg,1500kg,2500kg automatic sliding gate.
Q:Can you send samples before place the order?
Yes,sure.we can provide samples for quality checking.
Q:Do you provide OEM service?
Yes,we do
Q:How about the payment terms ?
T/T,D/P,L/C,Paypal,Western union and cash all acceptable.
Q:How about your quality warranty?
When the products got problem during our warranty period,we will provide
