Basic Info.
Model NO.
LC1-D9511
Coil Voltage
12V, 24V, 48V, 220V, 240V
Specification1
Household AC Contactor
Function
Long Life
Temperature Change
No Temperature Rise
Auxiliary Contact
Without Vibration
Electromagnetic
Anti Electromagnetic Interference
Current
95AC 1no 1nc
Warranty
3 Years
Transport Package
CTN
Specification
CE ROHS
Trademark
OEM
Origin
Zhejiang Yueqing
HS Code
853690000
Production Capacity
100000PC/Month
Product Description

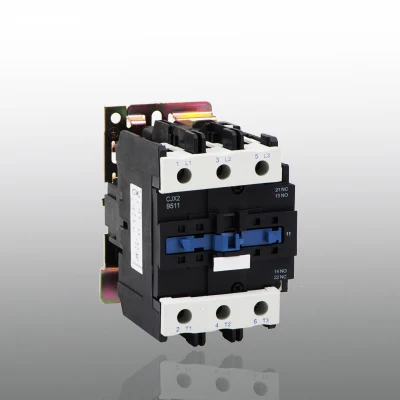

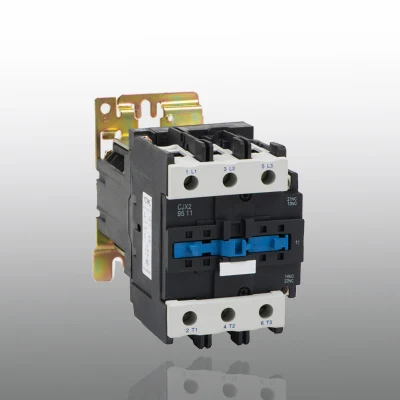

LC1-D 8011 Permanent magnet contactor for power distribution

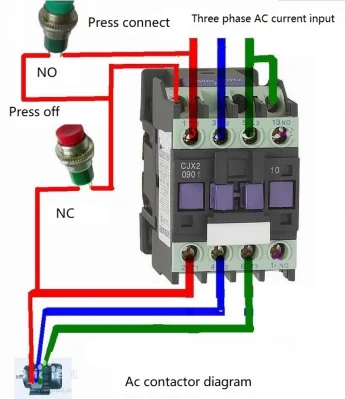

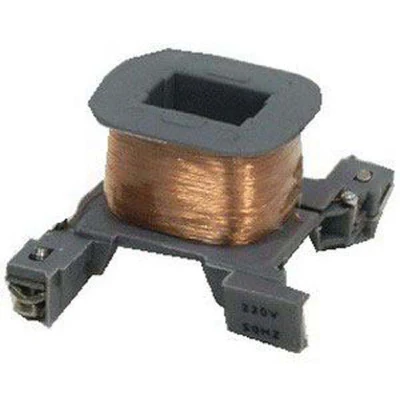

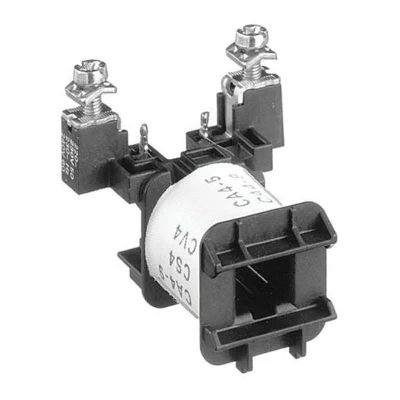

contactor worked principle : when the contactor coil is energized, the coil current will generate a magnetic field,
The generated magnetic field makes the static iron core generate electromagnetic attraction to attract the moving iron core, and drives the AC contactor point to act. The normally closed contact is open, and the normally open contact is closed. The two are linked. When the coil is de energized, the electromagnetic attraction disappears, and the armature is released under the action of the release spring, so that the contact is restored, the normally open contact is opened, and the normally closed contact is closed. The working principle of DC contactor is similar to that of temperature switch
The series JKC1 AC contactor is applicable at the line of AC 50/60 Hz, rated voltage up to 660V and rated current up to 95A for remote switch, breaking and frequent starting, controlling the AC motor. Moreover, the contactor can act as the time-delay contactor, reve-rsible contactor, star-delta starter by the accessories addition such as addition of modular auxiliary contact set. Air timedelay head, mechanical interlock mechanism, etc. Moreover, it could act as the electromagnetic starter by the direct plug of the thermal relay.
This product conforms to the requirement of IEC60947-4-1& GB14048.4 standards.
contactor worked principle : when the contactor coil is energized, the coil current will generate a magnetic field,
The generated magnetic field makes the static iron core generate electromagnetic attraction to attract the moving iron core, and drives the AC contactor point to act. The normally closed contact is open, and the normally open contact is closed. The two are linked. When the coil is de energized, the electromagnetic attraction disappears, and the armature is released under the action of the release spring, so that the contact is restored, the normally open contact is opened, and the normally closed contact is closed. The working principle of DC contactor is similar to that of temperature switch
The series JKC1 AC contactor is applicable at the line of AC 50/60 Hz, rated voltage up to 660V and rated current up to 95A for remote switch, breaking and frequent starting, controlling the AC motor. Moreover, the contactor can act as the time-delay contactor, reve-rsible contactor, star-delta starter by the accessories addition such as addition of modular auxiliary contact set. Air timedelay head, mechanical interlock mechanism, etc. Moreover, it could act as the electromagnetic starter by the direct plug of the thermal relay.
This product conforms to the requirement of IEC60947-4-1& GB14048.4 standards.
Type | Rated insulation voltage(V) | Conventional thermal current(A) | Rated operation current(A) | Control power(kw) | No .of contacts | Remark | ||||
220V | 380V | 415V | 440V | 660V | ||||||
JKC1-0910 0901 | 660 | 20 | 9 | 2.2 | 4 | 4 | 4 | 5.5 | 3P+NO 3P+NC | Installation method 1.with two screws 2.35mm din rail |
JKC1-1200 1201 | 20 | 12 | 3 | 5.5 | 5.5 | 5.5 | 7.5 | 3P+NO 3P+NC | ||
JKC1-1810 1801 | 32 | 18 | 4 | 7.5 | 9 | 9 | 9 | 3P+NO 3P+NC | ||
JKC1-2510 2501 | 40 | 25 | 5.5 | 11 | 11 | 11 | 15 | 3P+NO 3P+NC | ||
JKC1-3210 3201 | 50 | 32 | 7.5 | 15 | 15 | 15 | 18.5 | 3P+NO 3P+NC | ||
JKC1-4011 | 60 | 40 | 11 | 18.5 | 22 | 22 | 30 | 3P+NO+NC | Installation method 1.with three screws 2.75mm or 35mm din rail | |
JKC1-5011 | 80 | 50 | 15 | 22 | 25 | 30 | 33 | |||
JKC1-6511 | 80 | 65 | 18.5 | 30 | 37 | 37 | 37 | |||
JKC1-8011 | 125 | 80 | 22 | 37 | 45 | 45 | 45 | |||
JKC1-9511 | 125 | 95 | 25 | 45 | 45 | 45 | 45 |
Type | JKC1-09 | JKC1-12 | JKC1-18 | JKC1-25 | JKC1-32 | JKC1-40 | JKC1-50 | JKC1-65 | JKC1-80 | JKC1-95 | ||
Pick-up voltage 50/60Hz(V) | (0.85~ 1.1)Us | (0.85~ 1.1) Us | (0.85~ 1.1)Us | (0.85~ 1.1)Us | (0.85~ 1.1)Us | (0.85~ 1.1)Us | (0.85~ 1.1)Us | (0.85 ~1.1)Us | (0.85~ 1.1)Us | (0.85~ 1.1)Us | ||
Release voltage 50/60Hz(v) | (0.2~ 0.75)Us | (0.2~ 0.75)Us | (0.2~ 0.75)Us | (0.2~ 0.75)Us | (0.2~ 0.75)Us | (0.2~ 0.75)Us | (0.2~ 0.75)Us | (0.2~ 0.75)Us | (0.2~ 0.75)Us | (0.2~ 0.75)Us | ||
Coil power | 50Hz 60Hz | Pick-up(VA) | 70 | 70 | 110 | 110 | 110 | 200 | 200 | 200 | 200 | 200 |
Holding(VA) | 8 | 8 | 11 | 11 | 11 | 20 | 20 | 20 | 20 | 20 | ||
Pick-up(VA) | 80 | 80 | 115 | 115 | 115 | 200 | 200 | 200 | 200 | 200 | ||
Holding(VA) | 8 | 8 | 11 | 11 | 11 | 20 | 20 | 20 | 20 | 20 | ||
Power consumption (W) | 1.8~2.7 | 1.8~2.7 | 3~4 | 3~4 | 3~4 | 6~10 | 6~10 | 6~10 | 6~10 | 6~10 |
