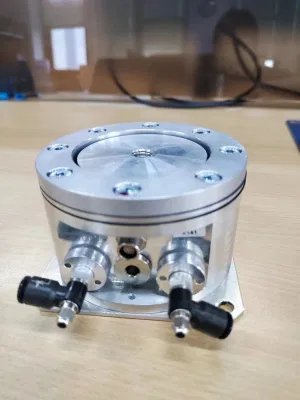

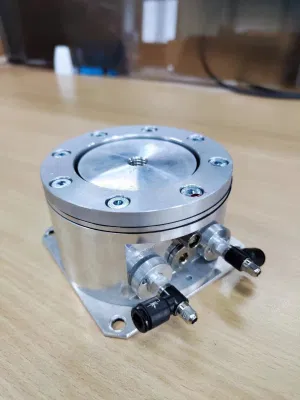

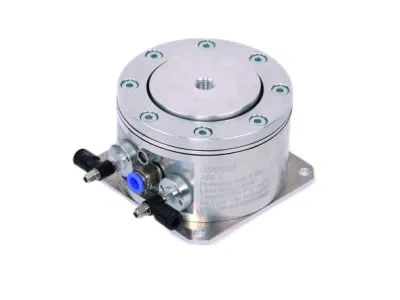

Laboratory precision air spring mount electronic control

With the air suspension element ADS, natural frequencies between 1.5 and 3 Hz can be achieved during machine installation.

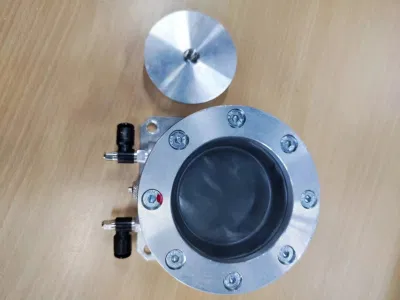

The highly flexible THERMOTEST diaphragm of the air suspension element ADS is characterized by its low inherent rigidity. Due to the available air volume and the highly flexible THERMOTEST diaphragm, natural frequencies between 1.5 and 3 Hz can be achieved.

Delivery contents of standard ICD pneumatic spring system
• 4 supporting points
   - 3 pneumatic springs ADS type

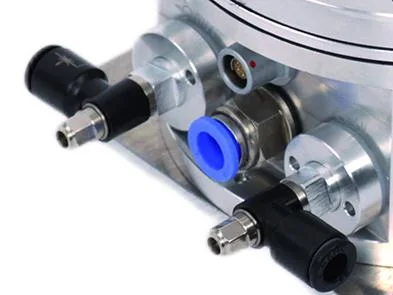

    Master with sensors and control valves
   - 1 pneumatic spring ADS type
   Slave without sensors and valves
• 1 control unit as 3-channel circuit board with USB cable
• Control cable for master elements
• Hose NW 4 with cross piece or T-pieces
• Power adapter

Options
• Control unit: circuit board in synthetic enclosure
• Connectors for control cable
• Filter-regulator unit consisting of pressure regulator, pressure gauge, filter, water separator
• Control cable: length of 3 control cables to customer specifications
• "Air Level Control" software for PC (Windows)
• Additional hose sections and connectors   according to number of pneumatic   springs

ICD system The basic version of the ICD pneumatic spring system is factory-programmed. However, the software allows varying the following parameters: reset accuracy, permissible  deflection, response time, average level. These parameters can be viewed, freely chosen within wide limits, and permanently stored in the control unit. The values are retained even after a  power failure. The factory default settings are documented in a datasheet.



ADS-ICD series Dimension table Dimensions in mm	D	Ho	Ni	A	Load (max.) kN
ADS 3	105	65	+/- 5	106	1.8
ADS 6	127	90	+/- 6	130	2.8
ADS 12	175/170	90	+/- 6	175	6.0
ADS 24	245	90	+/- 6	255	13.0
ADS 48	338	90	+/- 6	343	26.0
ADS 96	468	90	+/- 6	470	55.0
ADS 192	610	90	+/- 6	610	100.0

Control Unit
