F91 Electric Drain Ball Valve

Get reliable F91 Electric Drain Ball Valve from our factory. Trust our quality manufacturing for long-lasting performance. Order now!
Request a Quote

PRODUCTS DETAILS

Basic Info.

Model NO.
F91
Material
Carbon Steel
Medium
Water, Steam, Gas, etc
Structure
Through
Connection Mode
Flange
Seal
Hard Seal
Transport Package
Wooden Box
Specification
DN15-DN800
Trademark
xc
Origin
China
HS Code
8412310090
Production Capacity
10000

Product Description

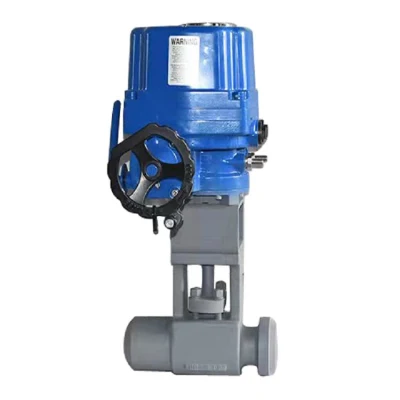

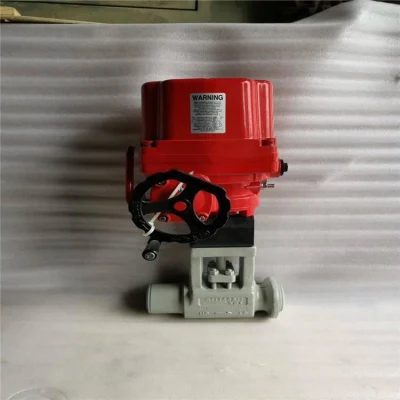

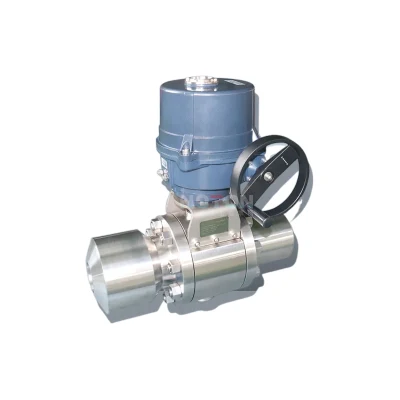

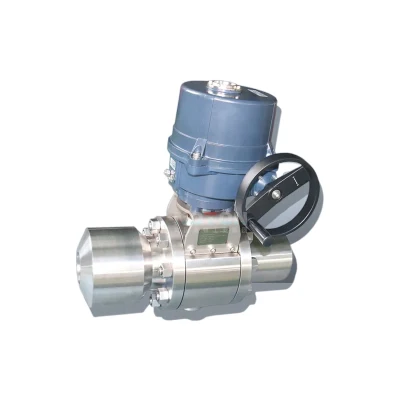

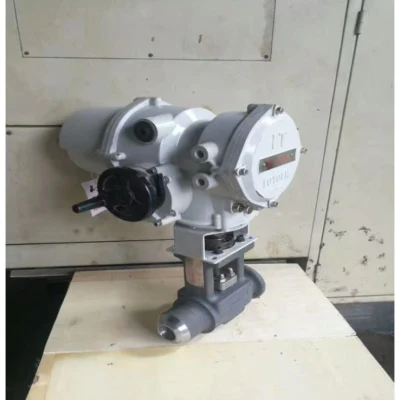

F91 Electric Drain Ball Valve F91 Electric Drain Ball Valve F91 Electric Drain Ball Valve F91 Electric Drain Ball Valve

Product Introduction:
F91 trap ball valve: also known as ultra-supercritical trap ball valve, the main material F91 alloy steel high temperature resistance ≤670ºC, the internal material Inconickel 718+CrC, integrated structure without connection leakage point, connection BW/SW, drive mode: Manual/pneumatic/electric, etc., supporting the use of boiler plant, turbine plant, auxiliary plant, etc., but also in the major power, chemical, steel industry at home and abroad to obtain excellent performance.
Structural principle:
The valve body is divided into three parts along the section perpendicular to the axis of the valve channel in the two seat parts. The whole valve is symmetrical along the central axis of the valve stem. It is mainly used in the pipeline to cut off, distribute and change the direction of the flow of the medium. Its large pivot structure ensures the accurate center position of the ball under high pressure to ensure the good operating performance of the valve; The standard valve seat adopts spring structure to push the valve seat to the ball to ensure good import and export two-way sealing performance; The use of its own discharge valve, the body cavity can be discharged outward; The pivot adopts explosion-proof protection structure to effectively prevent leakage; Low friction coefficient of the bearing, so that the torque is reduced to the smallest, easy to open and close the valve; The effective contact between the valve stem and the valve body makes the anti-static grounding device superior in performance. It has the advantages of excellent performance, high reliability, wide use and reasonable price.
Structural features:
Split or single forged valve body floating
 ball design
 special hard surface spraying process
 FCI-70-2 VI tight truncation
 valve stem double anti-channel and double guide to the design
 of live load packing compression structure, compensation packing bolt high temperature creep and packing wear
 ISO5211 plate

Connecting end:
Flange, thread, butt weld, socket weld, clamp
Main applications:
Thermal power plant boiler system, steam turbine system, condensation system, steam supply extraction system isolation, drainage, exhaust steam, overpressure protection (emergency pressure relief)
Material of main parts:

Serial number Part name ASTM A105 Series ASTM A182 F22 Series ASTM A182 F91/F92 Series
1 Valve body ASTM A105 ASTM A182 F22 ASTM A182 F91/F92
2 Valve seat 410 Spray chrome carbide Inconel 718+CrC
3 Sphere 410 Spray chrome carbide Inconel 718+CrC
4 Pre-tighten seat ASTM A105 nitriding ASTM A182 F22 Nitriding ASTM A182 F91/F92 Nitriding
5 Butterfly spring Inconel X 750
6 Seat support ring ASTM A105 nitriding ASTM A182 F22 Nitriding ASTM A182 F91/F92 Nitriding
7 circlip Inconel X 750
8 Take over 20 # 12Cr1MoV P91/P92
9 Stuffing Inconel 718 wire + Expanded graphite for high temperature
10 Bolts ASTM A193 B7 ASTM A193 B16 ASTM A193 B8M
11 Stuffing gland ASTM A105 nitriding ASTM A182 F22 Nitriding ASTM A182 F91/F92 Nitriding
12 Butterfly spring Inconel X 750
13 Nuts ASTM A194 2H ASTM A194 7 ASTM A194 BM
14 Stem Inconel 718 nitride
15 Thrust bearings Inconel 718 nitride
16 Connecting shaft ASTM A276 410 Nitriding
17 Brackets Q235
18 Pneumatic actuators Components
19 Hex socket screws ASTM A193 B7
