Basic Info.
Model NO.
DJ7-S
Certification
RoHS, FCC, CE
Application
Public Passage, Enterprise, Supermarket, Campus, Hospital, Parking, Warehouse, Hotel, Company, Garage, Community, Outdoor Parcel Lockers and Vending Machine
Working Principle
Electronically Controlled Lock
Function
Fail-Secure
Type
Electromagnetic Lock
Material
ABS/Steel
Operation Voltage
12/24VDC Intermittent
Power Consumption
12V DC 1500mA
Maximum Power on
1 Second
Holding Force
600kg
Cycling Rate
10,000,000
Reporting
One or Two Sensors
IP Class
IP67
Service
OEM/ODM
Working Temperature
-20c ~ +60c
Transport Package
72mmx62.5mmx14mm
Specification
CE & RoHS
Trademark
eboxlock
Origin
China
HS Code
83013000
Production Capacity
10K Per Month
Packaging & Delivery
Package Size
12.00cm * 11.00cm * 7.00cm
Package Gross Weight
0.220kg
Product Description

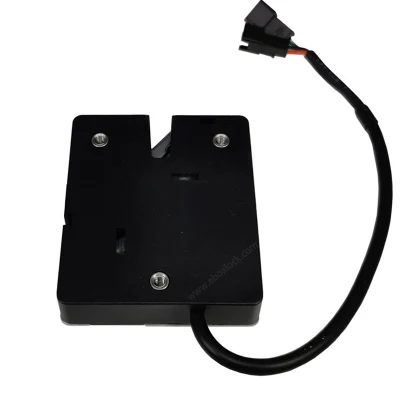

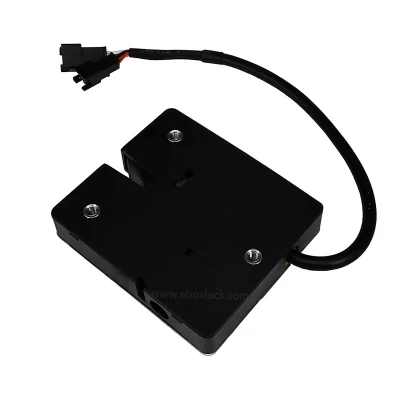

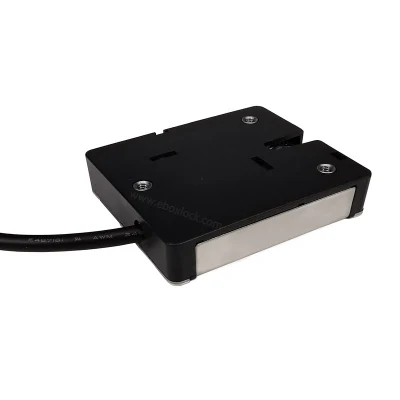

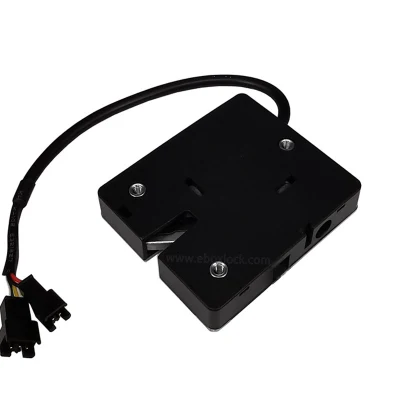

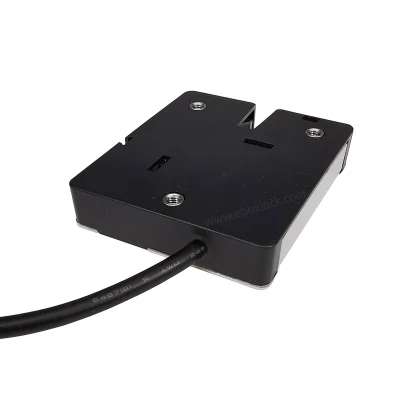

Durable Anti-Corrosion Electric Cabinet Lock DJ7-S is a compact electromechanical lock with concealed mechanism rated IP67, it is ideal for outdoor cabinets, drawers and lockers.
Surface mounting either vertically or horizontally offers easy and flexible installation. The cabinet lock is compatible with any existing access control system or simply controlled through a remote keypad or key switch. The cabinet lock allows mechanical override for emergency open.
Features
- Available in 12VDC or 24VDC
- Tough metal/ABS construction, stainless steel option
- Water proof concealed mechanism
- Optional internal microswitch for latch open/close output signal
- Optional door sensor
- Convenient mechanical override enables manual release during power failure
- Three-bolt regular triangle mounting enables high security and low install cost
- Accepts access control signals from wireless RF key fobs or proximity cards, numeric keypads, card readers,
- Can be fitted to outdoor locker, mail box and drawers etc
Specifications
| Operation Voltage: | 12/24VDC intermittent ±10% |
| Power Consumption: | 12V DC 1500mA |
| Max. power on: | Less than 1 second |
| Operation Mode: | Fail Locked |
| Holding Force: | 150KG |
| Cycle Rating: | More than 1,000,000 |
| Working Temperature: | -20ºC ~ +60ºC |
| Dimensions LxWxH: | 72mm*62.5mm*14mm |
| Protection Class: | IP67 |
Available options:
Extension cable with a variety of connectors
Plated-steel and stainless steel outer casing options
Mechanical override option for manual unlock in case of power failure
Rear or front mount mechanical override options
Optional push to open strength
Built-in microswitch for door open/close output signal
Able to add customer's Model No. And logo
Able to customize cable and connectors for customer
| Options for customization | ||||||
| Voltage | Current | Trigger Spring | Mounting holes | Material | Cable | Connector |
| 9V 12VDC 24VDC 48V | 1500mA 2000mA | 10N 25N 35N | M5 thread(standard) Ø5.5 thru (Optional) | Steel Stainless steel | Twisted RVV Flat cable | Molex KF2510 pH RJ11 |
| We can offer customized samples maximum 10PCS. MOQ of batch order for customization: 500PCS. | ||||||
Applications
The electronic cabinet lock is ideal for various applications as following:
Electronic lockers for storage or delivery
Steel cabinet or metal furniture
Retail display cases and drawers
Filing cabinet
Utility cabinets and drawers
Key cabinet
Museum or retail product display cases
Pharmaceutical cabinets and drawers
Electronic mailbox and lock box
