Basic Info.
Model NO.
Cj19-43A 380V
Types
AC
Polar Number
3
Rated Voltage of Main Circuit
380V
Rated Current of Main Circuit
100A
Species
AC Contactor
Attestation
CE
Transport Package
Carton
Specification
CJ19
Trademark
Yao Shun
Origin
China
Production Capacity
10000/Month
Product Description
Basic Info.
Product Description

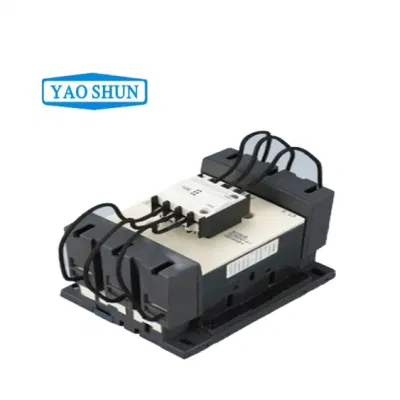

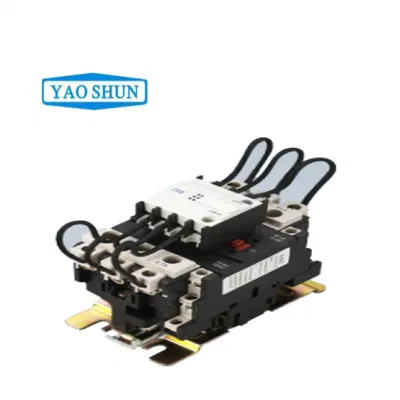

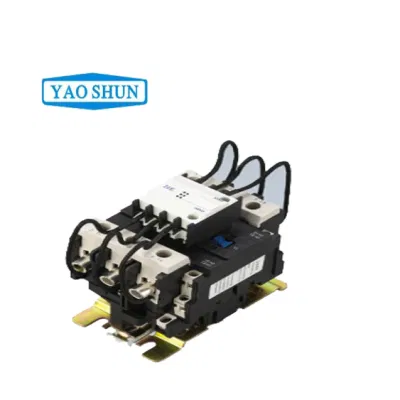

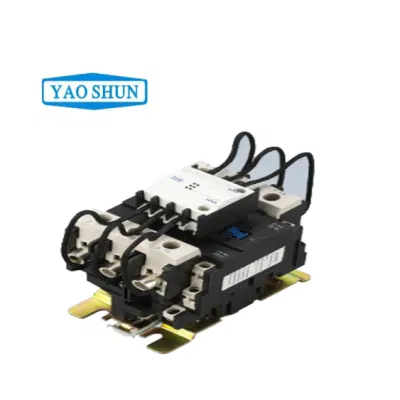

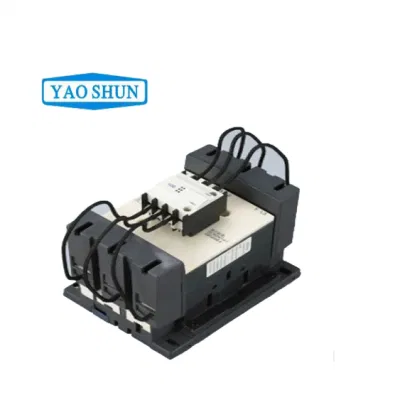

CJ19-43A 380V 3 Phase Coil ac contactor for self healing power capacitor
1.siliver alloy contacts
2.red copper coil
3. super long mechanical life
4. high flame retardant shell aluminium alloy bottom plate
5. precision mold
6.easy to use
7. safe and reliable
electric contactor price for power capacitor 380v 32A three pole
The contactor is direct action double break structure ,the contact system consists of upper and downward layout ,upper part has 3 pairs of contacts and current limiting resistance what become surge restrained device ,when closing current limiting contacts will make several millise cond at first ,then work contact is made closed later ,,current limiting contact will be released under the action of everlasting magnet and spring ,current limiting resistance is switched off ,please read contact inside electrical circle diagram .
electric contactor price for power capacitor 380v 32A three pole Main technical data
1.CJ19-25/43 contactor have two pairs of auxiliary contacts ,
2.CJ1963/95 has three pairs auxiliary contacts .contactor 's terminal have isolation cover .it is safety .coil connect terminal have V signal avoid to connect wrong .
3.CJ1925/43 has screw installation way .and it also have other way din dial 35mm .and face cover have a discharge square sheet .and user can print the code on the sheet .
4.CJ19 63/95 only have din dial 35mm or 75mm
5. Oem, ODM, whatever
Model NO | CJ19-43A | Packing | Carton |
Poles Number | 3 | Certification | CE |
Type | AC Contactor | Production Capacity | 10000pcs/month |
Rated Current(a) | 63A | Specification | 63A 100A |
Rated Voltage Ue | 220/380v | Rated Frequency | 50/60Hz |
Trademark | YAO SHUN | Compare with AC Contactor | No Limitations in Number of Switching Operations |
Brand | OEM/ODM/other | Signal Supply | Power Transformer Supply |
Origin | Wenzhou, China | Safety | Anti Hamonic |
CJ19-43A 380V 3 Phase Coil ac contactor for self healing power capacitor
1.siliver alloy contacts
2.red copper coil
3. super long mechanical life
4. high flame retardant shell aluminium alloy bottom plate
5. precision mold
6.easy to use
7. safe and reliable
electric contactor price for power capacitor 380v 32A three pole
The contactor is direct action double break structure ,the contact system consists of upper and downward layout ,upper part has 3 pairs of contacts and current limiting resistance what become surge restrained device ,when closing current limiting contacts will make several millise cond at first ,then work contact is made closed later ,,current limiting contact will be released under the action of everlasting magnet and spring ,current limiting resistance is switched off ,please read contact inside electrical circle diagram .
electric contactor price for power capacitor 380v 32A three pole Main technical data
Item | Voltage | CJ19-25 | CJ19-32 | CJ19-43 | CJ19-63 | CJ19-95 | ||||||||
Electrical life 104 | 10 | 10 | 10 | 10 | 10 | |||||||||
Rated current (380v)A | 17 | 23 | 29 | 43 | 63 | |||||||||
Controllable capacity (kvar) | 220v | 6 | 9 | 10 | 15 | 22 | ||||||||
380v | 12 | 18 | 20 | 30 | 44 | |||||||||
Rated insulating voltage (V) | 500 | 500 | 500 | 500 | 500 | |||||||||
Surge limiting capacity | 20le | 20le | 20le | 20le | 20le | |||||||||
Operating conditions | Absorbing (85%-110%)US release (20%~75%)Us | |||||||||||||
Coil burden (start up /lasting )VA | 70/8 | 110/11 | 110/11 | 200/20 | 200/20 | |||||||||
Control capacity of auxiliary contact | AC 15 360VA DC-13 33W | |||||||||||||
Weight | 0.44 | 0.63 | 0.64 | 1.4 | 1.5 | |||||||||
Contactor model | A max | B max | C max | D max | E | F | Notes | |||||||
CJ19-25 | 80 | 47 | 124 | 76 | 34/35 | 50/60 | Screw mounting and 35mm railway available | |||||||
CJ19-32 | 90 | 58 | 132 | 86 | 40 | 48 | ||||||||
CJ19-43 | 90 | 58 | 136 | 86 | 40 | 48 | ||||||||
CJ19-63 | 132 | 79 | 150 | Except for screw mounting ,also can use 35 70mm railway available | ||||||||||
CJ19-95 | 135 | 87 | 158 |
![Cj19-43A 380V 3 Phase Coil AC Contactor for Self Healing Power Capacitor](http://img6.grofrom.com/www.zhiyuspringgroup.com/226f3j00wGnibEBJfvrU/Cj19-43A-380V-3-Phase-Coil-AC-Contactor-for-Self-Healing-Power-Capacitor.webp)
![Cj19-43A 380V 3 Phase Coil AC Contactor for Self Healing Power Capacitor](http://img6.grofrom.com/www.zhiyuspringgroup.com/226f3j00mfnVqzvtheuR/Cj19-43A-380V-3-Phase-Coil-AC-Contactor-for-Self-Healing-Power-Capacitor.webp)
![Cj19-43A 380V 3 Phase Coil AC Contactor for Self Healing Power Capacitor](http://img6.grofrom.com/www.zhiyuspringgroup.com/226f3j00dGNWoVBZLvpU/Cj19-43A-380V-3-Phase-Coil-AC-Contactor-for-Self-Healing-Power-Capacitor.webp)
2.CJ1963/95 has three pairs auxiliary contacts .contactor 's terminal have isolation cover .it is safety .coil connect terminal have V signal avoid to connect wrong .
3.CJ1925/43 has screw installation way .and it also have other way din dial 35mm .and face cover have a discharge square sheet .and user can print the code on the sheet .
4.CJ19 63/95 only have din dial 35mm or 75mm
5. Oem, ODM, whatever
