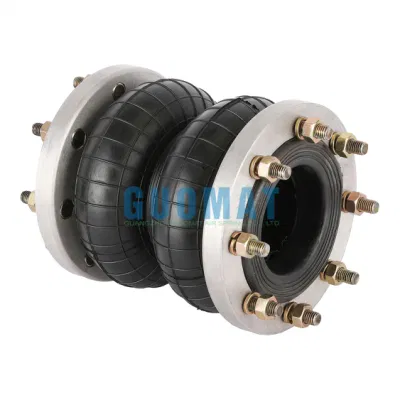

Air Bellows Manufacturers 2H250180 Double Convoluted Flange Connection Air Spring
Product Details
Type | Flange Air Spring | GUOMAT No. | 2H250180 |
Material | Rubber and Steel | Warranty | 12 Months |
Rubber Type | Natural Rubber | MOQ | 1 Piece |
Technical Data
Diameter: 185mm
Minimum Compression: 84mm
Extend: 206mm
Full Stroke: 122mm
Rubber Bellows Max Diameter: 270mm (At 0.7Mpa)
Natural Height: 180mm
Cover Plate Diameter: 183mm
Every Standard Air Spring Consists of 4 Layers
•The inner layer which actually contains the air.
•The first layer of fabric reinforced rubber applied
at a specific angle.
•The second layer of fabric reinforced rubber which
is laid to a specific angle to the first layer.
•The cover to protect the bias fabric plies.
Company Profile
![Air Bellows Manufacturers 2h250180 Double Convoluted Flange Connection Air Spring](http://img6.grofrom.com/www.zhiyuspringgroup.com/226f3j00khjoLKAqiOcM/Air-Bellows-Manufacturers-2h250180-Double-Convoluted-Flange-Connection-Air-Spring.webp)
Packaging & Shipping
Packing Details
1. One piece in a poly bag.1piece in a carton.
2. Mark the product numbers and the QTY outside the carton.
3. As your requirement.
Shipping Details
1.Delivery time: Usually 2-8 working days after receiving the payment.
2.Shipping by Air,By Sea,By Express(DHL,UPS,FEDEX...)
3.Please make sure the address is correct, after the goods are shipped, we will track the logistics information until you receive the goods.

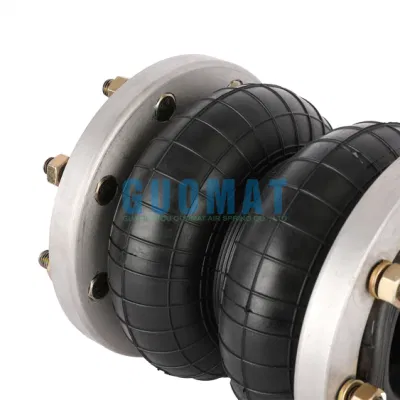

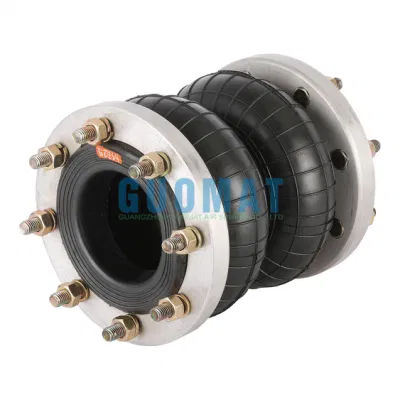

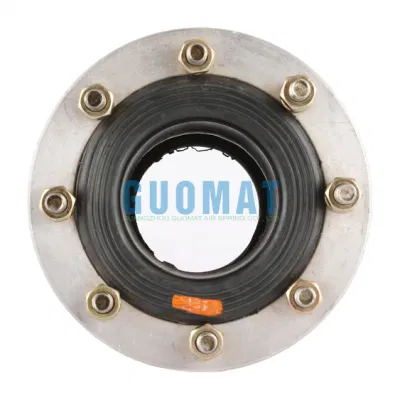

Product Images
FAQ
1. Are you a Manufacture factory? Yes, We are the direct manufacture factory, located in Guangzhou China, Which is specialized in air spring in China for over 15years experience from 2008 years. |
2. What is your main products? Our main products are air spring, rubber bellows, air suspension spring, air suspension compressor and refitted suspension system. |
3. Is the sample available? Yes, Usually we send the samples by TNT,DHL,FEDEX or UPS. |
4. What is your warranty term? There is a 12months warranty for our export products has run out from the date of the shipment. |
5. Can i use my own logo and design on products? YES,OEM is welcomed. |
6. I can not find out the items what i want from your website, can you offer the products i need? YES.One of our service term is sourcing the products that our customers need,So please tell us the details information of the item. |
