Basic Info.
Model NO.
TBM F4YT2A
Rated Passenger Capacity
2 Person
Specification
ABS engineering plastic+sheet metal exterior decor
Origin
China

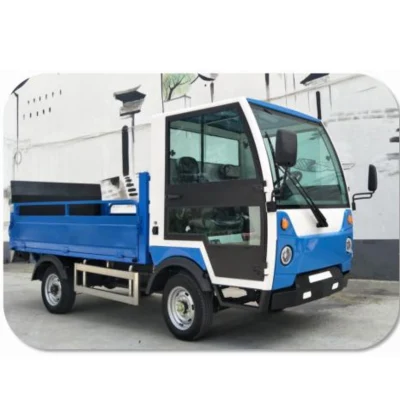

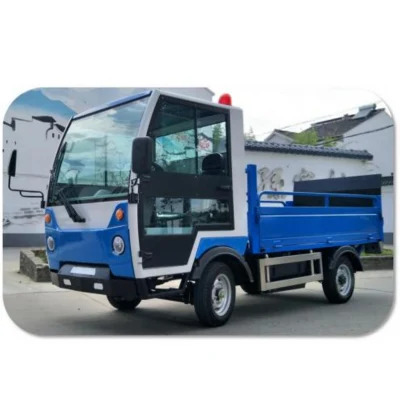

Product Description
| basic parameters | Overall dimensions(mm): | 4450*1450*2050 | ||||
| Rated passenger capacity (person): | 2 | wheelbase(mm): | 2200 | |||
| Front track width(mm): | 1240 | Rear track width(mm): | 1220 | |||
| curb weight(kg): | 1400 | RATED LOAD(kg): | 1500 | |||
| maximum speed (km/h): | 28 | Minimum braking distance (m) (v=20km/h): | ≤5 | |||
| Driving range(Km): | ≥60 | Max Gradeability(%): | ≥15 | |||
| Ground clearance (mm): | 180 | minimum turning radius (m): | 5 | |||
| electrical system | Controller: | Intelligent communication electronic controller | battery: | 72V150Ah (maintenance free)* | ||
| electrical machinery: | 72-5Kw AC motor | Charger: | Vehicle intelligent charger* | |||
| charging time | 8-10 hours | Brake booster pump: | High power 6-inch vacuum booster pump* | |||
| instrument: | LCD intelligent instrument | LED lights:: | Turning+headlights+driving* | |||
| Chassis system | frame: | Special vehicle fully riveted frame* | propons: | 5-hole fully floating load-bearing front axle* | ||
| suspension: | Front and rear longitudinal steel plate springs+cylindrical hydraulic damping shock absorbers* | rear axle: | 5-hole fully floating rear axle with final drive and differential, longitudinal leaf spring non independent suspension* | |||
| powertrain: | Rear drive | Steering: | Circular ball steering gear+steering wheel rotation Dynamic (with EPS directional booster)* | |||
| brake system: | Dual circuit hydraulic braking+brake assist, parking brake device | tire: | 165/70R13 vacuum tire (8P radial high load vacuum tire) | |||
| Body system | car body: | Sheet metal body+whole vehicle electrophoresis+epoxy primer+baking paint* | pilothouse: | Engineering vehicle profile cab* | ||
| rearview mirror: | Exterior mirror | Driver's door: | Aluminum alloy rear door opening (optional)* | |||
| Material of side guardrail: | Stainless steel* | body shell: | ABS engineering plastic+sheet metal exterior decoration* | |||
| Rear box size(mm): | 2800x1400x550 | Barrel quantity (piece): | 8 (240L standard trash can) | |||
| Hydraulic tailboard | power unit: | 72v800w* | Working pressure(MPa) | 8-10 | ||
| Board size: length * width (mm): | 920*1350 | load(Kg) | 300 | |||
| Lifting Height(mm): | 720 | Tailboard lifting/lowering time(S): | 5/8 | |||
| Angularity( ° ) : | 90 | Tailboard closing/opening time(S): | 3/5 | |||
| Usage characteristics: | ||||||
| 1,The entire vehicle adopts a three-dimensional forward modular design, which is convenient for inspection and maintenance. The appearance is novel and fashionable, and the structure is sturdy and durable. The accessories have strong universality, excellent interchangeability and reliability. 2,The cab adopts an all metal cab with a patented profile shape. The door is made of aluminum alloy material and has sliding glass. Beautiful, fashionable, and reliable. | ||||||
| 3,Chassis: Adopting a special vehicle fully riveted frame, fully automotive technology, strong load-bearing capacity, and excellent torsional resistance. All use electrophoresis+baking process, normal use for 10 years without damage. The chassis adopts four-wheel hydraulic braking, equipped with a vacuum assisted braking system, and a rotating assisted EPS steering system to ensure your safe driving. | ||||||
| 4,Box: Made of Q235A/B high-quality carbon steel sheet metal, with whole piece electrophoresis and baking paint, anti-corrosion, rust prevention, weather resistance, suitable for working at temperatures of -40~60 degrees Celsius, and also suitable for coastal warm and humid environments with high salinity. 5,Hydraulic tailboard: The rear of the trunk adopts a parallel lifting hydraulic tailboard of the same type as the car, operated by buttons and controlled by electromagnetic valves, which is safe and can carry up to 500kg, easily solving the problem of cargo loading. | ||||||
| 6,Other: Modular design, battery, electronic control, etc. can be quickly inspected and maintained. | ||||||
| 7,This vehicle is widely used for municipal garden transportation operations, engineering repair transportation, environmental sanitation operations, enterprise freight, etc. | ||||||
Trail-blazer Manufacturing is a vehicle manufacturer specializing in personalized customization and refitting. The company has a strong background in automotive and all-terrain vehicle design technology, and broad ideas for new product development.
The price of our company's electric low-speed vehicles ranges from US$2,000 to US$7,000. With rich OEM experience and ODM capabilities, partial or complete vehicle customization can be realized. As a manufacturer that constantly develops new products,we are always at the forefront of the industry. And successfully launched a more off-road style appearance and real 4-wheel drive in 2023, which makes our products more off-road capable.
Our factory believes in the business philosophy of "independent research and development, leading technology, first-class service, and integrity-based". We have launched a series of electric special vehicles and obtained several patents. The products are exported to more than 30 countries on five continents around the world, and have won unanimous praise.
Trail-blazer has rich supply chain resources and is good at cross-border integration of supply chains Resources, to truly achieve the industry's most cost-effective products and the most professional services.
The price of our company's electric low-speed vehicles ranges from US$2,000 to US$7,000. With rich OEM experience and ODM capabilities, partial or complete vehicle customization can be realized. As a manufacturer that constantly develops new products,we are always at the forefront of the industry. And successfully launched a more off-road style appearance and real 4-wheel drive in 2023, which makes our products more off-road capable.
Our factory believes in the business philosophy of "independent research and development, leading technology, first-class service, and integrity-based". We have launched a series of electric special vehicles and obtained several patents. The products are exported to more than 30 countries on five continents around the world, and have won unanimous praise.
FAQ
Q1. Do you accept special request to customize the vehicles ?
Answer: we could customize vehicles as per customer's special request with reasonable cost and delivery time.
Q2. What is your warranty term?
Answer: We provide 1 year warranty. for failed part under warranty, if it can be repaired at your side and the repair cost is
lower than the valve of the part, we will cover the repair cost; otherwise, we will send replacements and cover the freight cost if any.
lower than the valve of the part, we will cover the repair cost; otherwise, we will send replacements and cover the freight cost if any.
Q3. Do you provide after service spare parts?
Answer: Yes, we provide all the spare parts to our vehicles, even 8 years after we stop the production of the model. For your easier working to select the spare parts, we also supply parts list for you to choose the parts from .
Q4. Do you provide technical support?
Answer: we could customize vehicles as per customer's special request with reasonable cost and delivery time.
Q5. Do you provide vehicle assembly service if we buy the vehicles in SKD or CKD ?
Answer:we will supply the vehicle assemble guide manual , When the vehicle is in SKD way, the reassembly is just bolt and nut work, it is not difficult at all. Unless you have the assembly capability, we do not sell the vehicles in CKD way. If you do have bigger volume, we can give instructions via different ways when needed.
Q6. Do you accept OEM order?
Answer: Yes, we will accept.
Q7. What are your terms to be your agent/dealer in my country?
Answer: We have several basic requirements, firstly you shall be in electric vehicle business for some time; secondly, you shall have the capability to provide after service to your customers; thirdly, you shall have the capability to order and sell
reasonable volume of electric vehicles.
reasonable volume of electric vehicles.
Q8: What is your payment term?
Answer: For new customers, our typical payment term is 'T/T 30% deposit against order confirmation, T/T 70% before container loading'
Q9: Why should you buy from us not from other suppliers?
Answer: Our factory has strong manufacturing capacity, high quality control of products, cost control ability, who can offer high quality reasonable price products.
