Basic Info.
Product Description
Size:8*50*27 9*50*127 9*50*145 10*50*130 10*50*135 10*50*145 10*50*150 11*56*150 12*56*150
| Product Name | volume(mm) | weight(g) | quantity | Single weight(g) |
| 7×50×127Water pump spring(B)3 | Φ79*155 | 20 | ||
| 8×50×124Water pump spring(B)3 | Φ66*124 | 20 | ||

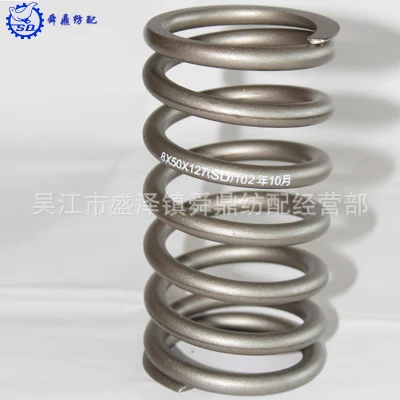

| 8×50×127Water pump spring(B)3 | Φ66*127 | 11.7 | 20 | 0.585 |
| 8×50×132Water pump spring3(B) | Φ66*132 | 20 | ||
| 8×56×140Water pump spring(B)3 | Φ70*140 | 13.8 | 20 | 0.69 |
| 9×50×123Water pump spring(B)3 | Φ68*123 | 15.2 | 20 | 0.76 |
| 9×50×123Water pump spring | Φ68*123 | 20 | ||
| 9×50×130Water pump spring(B)3 | Φ68*130 | 15 | 20 | 0.75 |
| 9×50×135Water pump spring(B)3 | Φ68*135 | 15.8 | 20 | 0.79 |
| 9×50×140Water pump spring(B)3 | Φ68*140 | 16 | 20 | 0.8 |
| 9×50×145Water pump spring(B)3 | Φ68*145 | 16.2 | 20 | 0.81 |
| 9×50×150Water pump spring(B)3 | Φ68*150 | 16.3 | 20 | 0.815 |
| 9×56×130Water pump spring(B)3 | Φ74*130 | 16.5 | 20 | 0.825 |
| 9×56×135Water pump spring(B)3 | Φ74*135 | 16.7 | 20 | 0.835 |
| 9×56×140Water pump spring(B)3 | Φ74*140 | 16.8 | 20 | 0.84 |
| 9×56×143Water pump spring(B)3 | Φ74*143 | 20 | ||
| 9×56×145Water pump spring(B)3 | Φ74*145 | 16.6 | 20 | 0.83 |
| 9×56×150Water pump spring(B)3 | Φ74*150 | 17.3 | 20 | 0.865 |
| 9×58×140Water pump spring(B)3 | Φ76*140 | 16.85 | 20 | 0.8425 |
| 9.5×50×130Water pump spring(B) | Φ69*130 | 20 | 0 | |
| 9.5×50×135Water pump spring(B)3 | Φ69*135 | 17.8 | 20 | 0.89 |
| 9.5×50×140Water pump spring(B)3 | Φ69*140 | 17.85 | 20 | 0.8925 |
| 9.5×56×140Water pump spring(B)3 | Φ75*140 | 19.8 | 20 | 0.99 |
| 9.5×56×145Water pump spring(B)3 | Φ75*145 | 19.85 | 20 | 0.9925 |
| 9×58×150Water pump spring(B)3 | Φ77*150 | 18 | 20 | 0.9 |
| 10×50×123Water pump spring(B)3 | Φ70*123 | 18.6 | 20 | 0.93 |
| 10×50×123Water pump spring(3) | Φ70*123 | 20 | ||
| 10×50×123Water pump spring(B/R)3 | Φ70*123 | 20 | ||
| 10×50×127Water pump spring(B)3 | Φ70*127 | 18.8 | 20 | 0.94 |
| 10×50×127Water pump spring(3) | Φ70*127 | 20 | ||
| 10×50×127Water pump spring(B/R)3 | Φ70*127 | 20 | ||
| 10×50×130Water pump spring(B)3 | Φ70*130 | 20 | ||
| 10×50×130Water pump spring(3) | Φ70*130 | 20 | ||
| 10×50×130Water pump spring(B/R)3 | Φ70*130 | 18.7 | 20 | 0.935 |
| 10×50×135Water pump spring(B)3 | Φ70*135 | 20 | ||
| 10×50×135Water pump spring(3) | Φ70*135 | 18.8 | 20 | 0.94 |
| 10×50×135Water pump spring(B/R)3 | Φ70*135 | 20 | ||
| 10×50×140Water pump spring(B)3 | Φ70*140 | 20 | ||
| 10×50×140Water pump spring(3) | Φ70*140 | 19.9 | 20 | 0.995 |
| 10×50×140Water pump spring(B/R)3 | Φ70*140 | 20 | ||
| 10×50×145Water pump spring(B)3 | Φ70*145 | 20 | ||
| 10×50×145Water pump spring(3) | Φ70*145 | 20 | ||
| 10×50×145Water pump spring(B/R)3 | Φ70*145 | 20 | ||
| 10×50×150Water pump spring(B)3 | Φ70*150 | 20 | 20 | |
| 10×50×150Water pump spring(3) | Φ70*150 | 20 | ||
| 10×50×150Water pump spring(B/R)3 | Φ70*150 | 20 | ||
| 10×56×135Water pump spring(B)3 | Φ76*135 | 20.4 | 20 | 1.02 |
| 10×56×140Water pump spring(B)3 | Φ76*140 | 20.45 | 20 | 1.0225 |
| 10×56×140Water pump spring(B/R)3 | Φ76*140 | 20 | ||
| 10×56×145Water pump spring(B)3 | Φ76*145 | 20 | ||
| 10×56×150Water pump spring(B)3 | Φ76*150 | 20 | ||
| 10×56×150×10.5Water pump spring(B)3 | Φ76*150 | 20 | ||
| 10×58×140Water pump spring(B)3 | Φ78*140 | 21 | 20 | 1.05 |
| 10×58×150Water pump spring(B)3 | Φ78*150 | 22.35 | 20 | 1.1175 |
| 10×58×150Water pump spring(3) | Φ71*150 | 20 | ||
| 10.5×50×135Water pump spring(B)3 | Φ71*135 | 20 | ||
| 10.5×50×140Water pump spring(B)3 | Φ71*140 | 21.8 | 20 | 1.09 |
| 10.5×50×145Water pump spring(B)3 | Φ71*145 | 20 | ||
| 10.5×50×150Water pump spring(B)3 | Φ71*150 | 21.95 | 20 | 1.0975 |
| 10.5×56×140Water pump spring(B)3 | Φ77*140 | 22.5 | 20 | 1.125 |
| 10.5×56×143Water pump spring(B)3 | Φ77*143 | 20 | ||
| 10.5×56×145Water pump spring(B)3 | Φ77*145 | 22.55 | 20 | 1.1275 |
| 10.5×56×150Water pump spring(B)3 | Φ77*150 | 22.65 | 20 | 1.1325 |
| 10.5×56×150Water pump spring(B R)3 | Φ77*150 | 20 | ||
| 10.5×58×150Water pump spring(B)3 | Φ79*150 | 22.8 | 20 | 1.14 |
| 10×57.5×150Water pump spring3 | Φ78*150 | 20 | ||
| 11×50×140Water pump spring(B)3 | Φ72*140 | 23.7 | 20 | 1.185 |
| 11×50×145Water pump spring(B)3 | Φ72*145 | 25.3 | 20 | 1.265 |
| 11×50×150Water pump spring(B)3 | Φ72*150 | 20 | ||
| 11×50×150Water pump spring3 | Φ72*150 | 25.5 | 20 | 1.275 |
| 11×56×140Water pump spring(B)3 | Φ78*140 | 25.2 | 20 | 1.26 |
| 11×56×145Water pump spring(B)3 | Φ78*145 | 25.3 | 20 | 1.265 |
| 11×56×150Water pump spring(B)3 | Φ78*150 | 20 | ||
| 11×56×150Water pump spring(B R)3 | Φ78*150 | 26.8 | 20 | 1.34 |
| 11×58×150Water pump spring(B)3 | Φ80*150 | 20 | ||
| 11.5×50×145Water pump spring(B)3 | Φ73*150 | 26.8 | 20 | 1.34 |
| 11.5×50×150Water pump spring(B)3 | Φ73*150 | 26 | 20 | 1.3 |
| 11.5×50×155Water pump spring(B)3 | Φ73*155 | 20 | ||
| 11.5×52×150Water pump spring(B)3 | Φ75*150 | 20 | ||
| 11.5×56×145Water pump spring(B)3 | Φ79*145 | 27.3 | 20 | 1.365 |
| 11.5×56×150Water pump spring(B)3 | Φ79*150 | 20 | ||
| 11.5×56×155Water pump spring(B)3 | Φ79*155 | 30 | 20 | 1.5 |
| 12×50×150Water pump spring(B)3 | Φ74*150 | 20 | ||
| 12×54×140Water pump spring(B)3 | Φ78*140 | 30 | 20 | 1.5 |
| 12×54×150Water pump spring(B)3 | Φ78*150 | 29.8 | 20 | 1.49 |
| 12×56×140Water pump spring(B)3 | Φ80*140 | 30.1 | 20 | 1.505 |
| 12×56×150Water pump spring(B)3 | Φ80*150 | 30.4 | 20 | 1.52 |
| 12×56×155Water pump spring(B)3 | Φ80*155 | 32.5 | 20 | 1.625 |
| 12×56×160Water pump spring(B)3 | Φ80*160 | 20 | ||
| 12×56×165Water pump spring(B)3 | Φ80*165 | 20 | ||
| 12×58×155Water pump spring(B)3 | Φ82*155 | 20 | ||
| 12×60×155Water pump spring(B)3 | Φ84*155 | 20 | ||
| 12×62×155Water pump spring(B)3 | Φ86*155 | 20 | ||
| 13×50×150Water pump spring(B)3 | Φ76*150 | 35 | 20 | 1.75 |
| 13×54×150Water pump spring(B)3 | Φ80*150 | 35.6 | 20 | 1.78 |
| 13×56×150Water pump spring(B)3 | Φ82*150 | 35.8 | 20 | 1.79 |
| 13×56×155Water pump spring(B)3 | Φ82*155 | 36 | 20 | 1.8 |
| 13×56×175Water pump spring(B)3 | Φ82*175 | 37 | 20 | 1.85 |
| 13×60×155Water pump spring(B)3 | Φ86*155 | 37.8 | 20 | 1.89 |
| 13×60×160Water pump spring(B)3 | Φ86*160 | 38 | 20 | 1.9 |
| 13×60×165Water pump spring(B)3 | Φ86*165 | 38.4 | 20 | 1.92 |
| 13×60×175Water pump spring(B)3 | Φ86*175 | 38.7 | 20 | 1.935 |

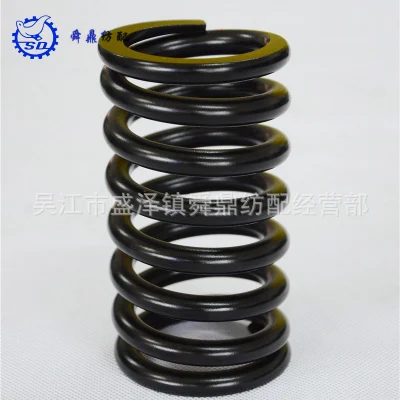

Shunding (SD) spring is the heart of the hydraulic loom.
The advanced technological concept of the same industry of Taiwan and Japan
Combine high-end precision equipment with traditional manual work
Mature and superb processing technology
Create extraordinary quality.
Select Japanese materials, made in Taiwan, sold directly in mainland China, superior cost performance.
Develop more than 70 different specifications of spring products for looms with years of professional experience in textual machinery.
Offer continuous and stable power support for looms and ensure start-up efficiency.
Provide customers with customized solutions as required and help them overcome production difficulties.
"SD" spring products
Have been sold to over 20 countries and regions, win trust and confirmation from customers at home and abroad and come out on top in the market share in the professional field.
Founded at the end of the 1970s, Taiwan Shunding Precision Machinery is a textile machinery enterprise specialized in production, research and development, and marketing in Taiwan and covering its main business in parts for all kinds of looms. It absorbs outstanding technological and management experience from the same industry in Taiwan and Japan and is committed to providing every customer with the best service.
Its subsidiaries in mainland China including Wujiang Shunfang Textile Machinery Co., Ltd., Shunding Textile Machinery Parts Operation Department, and Heding Textile Machinery Operation Department were founded in Shengze Town, Suzhou City, the city of silk between 2003 and 2009.
Pump spring for looms is one of the company's featured products. Due to its superior quality, outstanding cost performance, and intense research and development strength, it has been sold to various industrial countries worldwide and wins trust and confirmation from customers at home and abroad. It has also come out on top in the market share of the professional field.
Our Good Before & After sale Service: 1.Good Quality :we cooperated with many stable factories, |
2.Competitive price: factory direct supplier with best price. |
3.Quality guarantee, 100% pretest for each item. we can return the value of the problem goods, |
4.Within 3--5 days can send out to customer checking. |
5. 24 hours online and cellphone service making sure prompt response.. |
Q:What's your main line?
A: different kinds of Textile Machinery Spare Parts, mainly are textile machine parts, Weaving machine parts
Q: Do you accept OEM/ODM Service?
A: Yes, your drawing and sample is very welcome to develop and tooling.
Q:Do you accept LCL/mixed shipment?
A: Yes, we help customers to arrange LCL shipment in order to give them
more supports.
Q:What's your MOQ and its policy ?
A: Our MOQ is 1pc to 100pcs based on different sort of items.
Q:Can you provide free samples?
A: Yes, all the low cost items samples are available and the freight will be on your account.
Customized samples will be discussed specifically with sales.
Q:What's your delivery time?
A: Most items within 10 working days; Hot-sell items within 3 - 5 working days; Costomized and Special items depens on different situation.
Q:What about payment terms?
A: T/T; Paypal; Western Union;Ali-assurance pay.
Q:What's your guaranty?
A: any quality problems found when goods received and tested, we accept return payment or re-send new good condition goods.Long term on-line service.
Q:How about your after-sale service?
A: Yes, we take after-sale service as our very important issue in our business.
1) If any items delivered with damage or shortage,please kindly show us the photo and numbers for our efficient solution.
Any problem caused by our side would be handled at your satisfaction.
2) Any further video or photo guidance will be done whenever your customer meet assemble difficulty.
3) We are prepared to listen to your feedback and back to you with best solution,under any circumstance.
Packing and Delivery:
1.Carton package suitable for air and sea shipment.
2.Delivery normally is one week.
WE WILL KEEP YOU INFORMED OF OUR NEWEST PRODUCTS & WELCOME TO CONTACT US AT ANY TIME!
